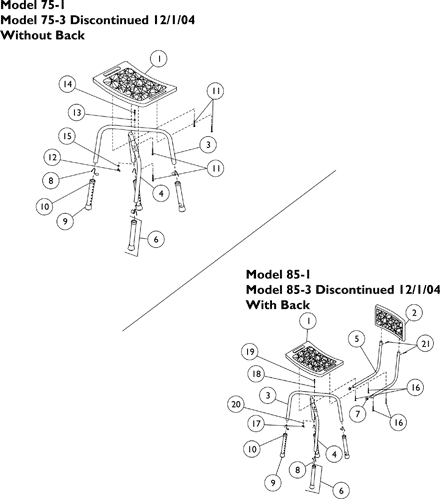

Shower Chair - Compact Blow Molded - Model 75-1,3 & 85-1,3

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1079341

NLA - Seat

N/A

Create/add to Wishlist

1079340

NLA - Back

N/A

Create/add to Wishlist

1079314

NLA - Leg, Top

N/A

Create/add to Wishlist

1079315

NLA - Leg, Bottom

N/A

Create/add to Wishlist

1083245

NLA - Tube, Backrest Support

N/A

Create/add to Wishlist

1065346

NLA - Leg Extension Assembly

N/A

A ,B

Create/add to Wishlist

1027096

Plug Button, Grey (7/8")

$9.00

Create/add to Wishlist

1094945

Button, Snap

$8.00

Create/add to Wishlist

1057797

Tip, Rubber, Light Grey (1-1/8")

$8.00

Create/add to Wishlist

1063124

Anti-Rattle, Grey (1-1/8")

Create/add to Wishlist

1074249

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
10	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
11	NLA - Washer, External Tooth Lock (1-1/4")	1	1
12	NLA - Nut, Wing (1/4-20)	1	1
8	NLA - Nut, Wing (1/4-20)	1	1
9	NLA - Washer, External Tooth Lock (1-1/4")	1	1
10	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
11	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
12	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
11	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
12	NLA - Nut, Wing (1/4-20)	1	1
13	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
14	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
15	NLA - Washer, External Tooth Lock (1-1/4")	1	1
11	NLA - Washer, External Tooth Lock (1-1/4")	1	1
12	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
13	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4
14	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
15	NLA - Nut, Wing (1/4-20)	1	1
13	NLA - Screw, Slotted Hex Washer Head (1/4-14 x 1-1/2")	1	4

NLA - Kit, Hardware

N/A

D ,E ,H

Create/add to Wishlist

1079912

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Nut, Wing (1/4-20)	1	1
14	NLA - Washer, External Tooth Lock (1-1/4")	1	1
15	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
16	NLA - Screw, Phillips Pan Head (1/4-14 x 2-1/4")	1	4
17	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
18	NLA - Screw, Phillips Pan Head Tap (#8-18 x 1/2")	1	2
16	NLA - Screw, Phillips Pan Head (1/4-14 x 2-1/4")	1	4
17	NLA - Nut, Wing (1/4-20)	1	1
18	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
19	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
20	NLA - Washer, External Tooth Lock (1-1/4")	1	1
21	NLA - Screw, Phillips Pan Head Tap (#8-18 x 1/2")	1	2
16	NLA - Washer, External Tooth Lock (1-1/4")	1	1
17	Screw, Phillips Pan Head (1/4-20 x 1-3/8")	1	1
18	NLA - Screw, Phillips Pan Head Tap (#8-18 x 1/2")	1	2
19	NLA - Washer, Steel Flat (1/4 x 5/8 x 1/16")	1	1
20	NLA - Nut, Wing (1/4-20)	1	1
21	NLA - Screw, Phillips Pan Head (1/4-14 x 2-1/4")	1	4

NLA - Kit, Hardware

N/A

F ,G ,H

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Due to style changes, when replacing Leg Extension after 3-2-98, order (4) each, and also replace Item 8 (Snap Button).
B	Includes Items 9 and 10.
C	Includes Plug Buttons.
D	To be used with Model 75-1, 3.
E	Kit Includes Items 11-15.
F	To be used with Model 85-1, 3.
G	Kit Includes Items 16-21.
H	Not Shown.
