Front Riggings - Legrests - Articulating - PAS4A - PAL4A

Print this page

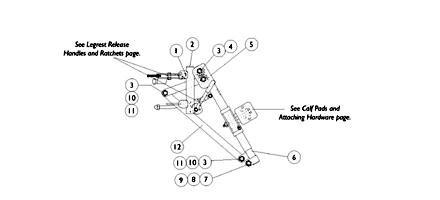

PAS4A/PAL4A Articulating Legrests

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1058478	NLA - Tube, Legrest Support - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1058479	NLA - Tube, Legrest Support - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1027097	Plug Button, Black (3/4")	1	1	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	40363X000	Hex Nut (3/8"-16)	3	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1022854	NLA - Screw, Shoulder Slotted Head (1/2 x 1-1/8", 3/8-16)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1022877	NLA - Tube, Support and Drive Link, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1022878	NLA - Tube, Support and Drive Link, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1022848	Tube, Slide, Articulating, Chrome - Right	1	1	$30.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1022849	Tube, Slide, Articulating, Chrome - Left	1	1	$31.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1027377	Washer (#20)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	7930363	NLA - Package, Locknut (5/16"-24)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1022866	NLA - Screw, Socket Button Head (3/8-16 x 3/4")	2	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1049527	Washer, Nylon (3/8 x 3/4 x 1/16")	2	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1022846	NLA - Bar, Link, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1058482	NLA - Legrest Support Assembly, Articulating, Adult, Chrome - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1058483	NLA - Legrest Support Assembly, Articulating, Adult, Chrome - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
