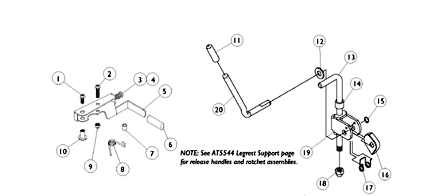

Front Riggings - Legrest Release Handles & Ratchets
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 7930335 | NLA - Package, Screw, Phillips Pan Head (#10-32 x 1/2") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1026107 | Screw, Phillips Pan Head (#10-32 x 1-3/8") | 1 | 1 |
$10.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
4 | 1028485 | NLA - Nut, Hex (#10-32) | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
5 | 1035539 | Handle, Release, Black - Right | 1 | 1 |
$14.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1035540 | Handle, Release, Black - Left | 1 | 1 |
$14.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1006490 | Tip, Plastic, Black | 1 | 1 |
$8.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
7 | 47565X057 | Bushing (7/32 x 3/8 x 11/32") | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1028707 | Spring, Release - Right | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1028708 | Spring, Release - Left | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 7930332 | NLA - Locknut, High Profile (#10-32) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1028846 | NLA - Rivnut (#10-32) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1040060 | Tip, Plastic, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 7930310 | NLA - Washer, Nylon (5/16 x 11/16 x 1/16") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 42326X004 | Bar, Ratchet - Right/Left | 1 | 1 |
$8.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
13 | 1023811 | NLA - Bar, Ratchet - Right | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
13 | 1023812 | NLA - Bar, Ratchet - Left | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
14 | 47328X003 | Bushing, Pivot (5/16 x 7/16 x 7/8") | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1040831 | Ring, Snap | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1037125 | Cam, Legrest | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1037485 | Spring, Release | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 7930336 | NLA - Nut, Acorn (5/16-24) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 04528X002 | Bracket, Release, Black | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 1037126 | Handle, Release | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | These items are only required on release handles for chairs built before 10/1/00. |
B | 904 Legrest |
C | Articulating Legrest |
