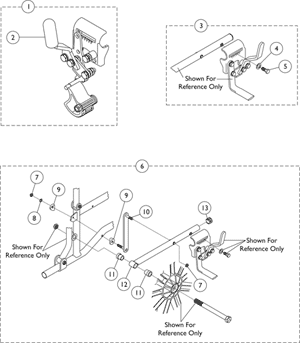

Wheel Locks -9RC-Hill Holder Style, 9697R, w/ Conventional Arms

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1023495

NLA - Wheel Lock Assembly, Hill Holder, Push to Lock - Right

N/A

Create/add to Wishlist

1023496

NLA - Wheel Lock Assembly, Hill Holder, Push to Lock - Left

N/A

Create/add to Wishlist

1023499

NLA - Wheel Lock Assembly, Hill Holder, Pull to Lock - Right

N/A

Create/add to Wishlist

1023500

NLA - Wheel Lock Assembly, Hill Holder, Pull to Lock - Left

N/A

Create/add to Wishlist

47376x024

Tip, Rubber Wheel Lock Handle, Black

$8.00

Create/add to Wishlist

1035964

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Washer (1/4 x 5/8 x 3/32")	1	2
5	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	2
4	Washer (1/4 x 5/8 x 3/32")	1	2
5	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	2

Kit, Hardware, Wheel Lock (Pair)

$18.00

Create/add to Wishlist

8881181877

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Locknut (5/16-24)	1	2
8	Washer, Steel (11/32 x 5/8 x 3/64")	1	1
9	Spacer, Coved (3/4 x 1 x 1/2")	1	2
10	Strap and Stud Assembly	1	1
11	Spacer (7/8")	1	2
12	Arm, Pivot, Color	1	1
13	Plug Button, Black (7/8")	1	1
10	Locknut (5/16-24)	1	2
11	Washer, Steel (11/32 x 5/8 x 3/64")	1	1
12	Spacer, Coved (3/4 x 1 x 1/2")	1	2
13	Strap and Stud Assembly	1	1
14	Spacer (7/8")	1	2
15	Arm, Pivot, Color	1	1
16	Plug Button, Black (7/8")	1	1

Kit, Hardware, Wheel Lock

$50.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 4 and 5.
B	Includes items 7-13. Specify Silver Vein (71P) when ordering. Chrome is No Longer Available.

Catalog Literature

Parts Books for 9000SL 9000XT 9000XDT 9000XT Recliner
