EQUIPMENT US Site

1

1156179

Shroud, Footrest

1

$161.00

Create/add to Wishlist

2

1095671

Leg, Single

1

2

$120.00

Create/add to Wishlist

3

1032246

Grip, Cane

1

$8.00

Create/add to Wishlist

4

1078287

Handle, Grey

1

$28.00

Create/add to Wishlist

5

1155118

Caster, Swivel (3")

1

2

$25.00

Create/add to Wishlist

6

1123539

Caster Assembly, Swivel w/ Brake (5")

1

2

$55.00

A

Create/add to Wishlist

7

1110421

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
3	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
2	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Instruction Sheet	1	1
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Caster Assembly, Swivel w/ Brake (5")	1	2
	Bushing (15/32 x 1-1/16 x 9/32")	1	2
	Instruction Sheet	1	1
	Bushing (15/32 x 1-1/16 x 9/32")	1	2

Kit, Caster Assembly, Swivel w/ Brake (5") (Pair)

1

$99.00

B

Create/add to Wishlist

8

1156176

Handle, Mounting

1

$14.00

Create/add to Wishlist

9

1169830

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	2
18	Washer, Flat (1/4 x 3/8 x 1/16)	1	1
23	Locknut (#10-32)	1	1
22	Locknut (#10-32)	1	1
22	Screw, Shoulder, Hex Socket (1/4 x 1/2", 10-32)	1	1
21	Roller, Index Plate	1	1
24	Washer, Flat (3/8 x 11/16 x 1/16")	1	2
15	Bracket, Index Plate	1	1
25	Locknut (5/16-18)	1	2
27	Washer, Flat (7/32 x 13/32 x 1/16)	1	1
29	Washer, Flat (3/8 x 11/16 x 1/16")	1	2
19	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
17	Washer, Flat (1/4 x 3/8 x 1/16)	1	1
21	Washer, Flat (7/32 x 13/32 x 1/16)	1	1
23	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
24	Washer, Flat (1/4 x 3/8 x 1/16)	1	1
26	Roller, Index Plate	1	1
15	Bracket, Index Plate	1	1
17	Screw, Shoulder, Hex Socket (1/4 x 1/2", 10-32)	1	1
18	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
20	Roller, Index Plate	1	1
19	Locknut (5/16-18)	1	2
16	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	2
20	Locknut (5/16-18)	1	2
22	Washer, Flat (7/32 x 13/32 x 1/16)	1	1
10	Bracket, Index Plate	1	1
16	Screw, Shoulder, Hex Socket (1/4 x 1/2", 10-32)	1	1
27	Washer, Flat (3/8 x 11/16 x 1/16")	1	2
21	Screw, Shoulder Hex Socket Head (3/8 x 1-1/2", 5/16-18)	1	2
28	Locknut (#10-32)	1	1

Kit, Index Plate w/ Hardware

1

$21.00

C

Create/add to Wishlist

11

1155720

Screw, Socket, Button Head w/ Patch (5/16-18 x 13/16")

1

4

$9.00

Create/add to Wishlist

12

1068305

Washer (1/2")

1

2

$10.00

Create/add to Wishlist

13

1064122

Spring, Compression (1 x 1-1/16 x 1/8")

1

$10.00

Create/add to Wishlist

14

1029134

Screw, Shoulder Hex Socket Head w/ Patch (1/2" x 1-1/4", 3/8-16)

1

$12.00

Create/add to Wishlist

23

1062424

Screw, Shoulder Hex Socket Head (1/2" x 5", 3/8-16)

1

2

$12.00

Create/add to Wishlist

24

1026174

Washer (1/2 x 7/8 x 3/64")

1

4

$9.00

Create/add to Wishlist

25

1062419

Bushing, Flanged

1

4

$9.00

Create/add to Wishlist

26

1065216

Locknut (3/8-16)

1

2

$10.00

Create/add to Wishlist

27

1065214

Washer, Flat (3/8 x 11/16 x 1/16")

1

3

$10.00

Create/add to Wishlist

28

1073884

Screw, Hex Head (1/2-13 x 1-1/4")

1

2

$10.00

Create/add to Wishlist

29

1014371

Lockwasher (1/2")

1

4

$10.00

Create/add to Wishlist

30

1023632

Clip, Shroud

1

4

$9.00

Create/add to Wishlist

31

1079113

Label, Year of Manufacture

1

$8.00

Create/add to Wishlist

32

1079112

Label, Attention

1

4

$8.00

Create/add to Wishlist

33

1065152

Tie Rod Assembly

1

2

Create/add to Wishlist

34

1147175

Cross Support with Footrest

1

$270.00

Note Code	Definition
A	Also available as a part of a kit, see item 7 (1110421).
B	Kit includes (2) Swivel Casters, (2) Bushings, and an Instruction Sheet.
C	Kit includes items 10, 15 - 22, and item 27.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

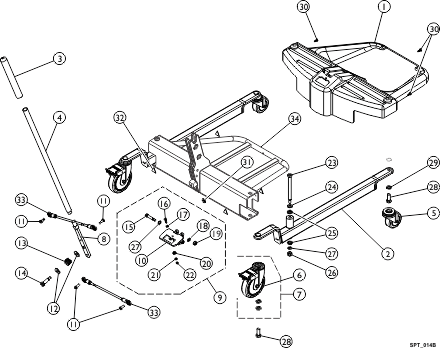

Base Assembly - RPS350-1 (After 7/1/10)
