Actuator Motor - Tilt and Mounting Hardware (Before 4/2/13)

Print this page

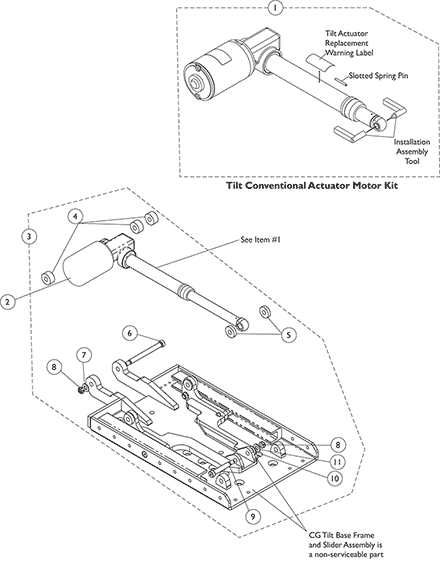

Tilt Actuator Motor and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1169660

Kit, Tilt Conventional Actuator Motor

$888.00

B ,C ,E

Create/add to Wishlist

1169660E

NLA - WARR RPLMT - Kit, Tilt Actuator Conventional Motor

N/A

B ,C ,E

Create/add to Wishlist

1144610

NLA - Cover, Tilt Actuator Motor Boot

N/A

Create/add to Wishlist

1153721

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Steel (11/32 x 11/16 x 1/16")	1	1
8	Locknut (5/16-18)	1	2
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Steel (11/32 x 11/16 x 1/16")	1	1
8	Locknut (5/16-18)	1	2
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Steel (11/32 x 11/16 x 1/16")	1	1
8	Locknut (5/16-18)	1	2
3	Spacer (3/8 x 1 x 1/2")	1	3
4	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
5	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
6	Washer, Steel (11/32 x 11/16 x 1/16")	1	1
7	Locknut (5/16-18)	1	2
8	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
9	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
10	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
4	Spacer (3/8 x 1 x 1/2")	1	3
5	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
6	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
7	Washer, Steel (11/32 x 11/16 x 1/16")	1	1
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
8	Locknut (5/16-18)	1	2
9	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
10	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
11	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
3	Spacer (3/8 x 1 x 1/2")	1	3
4	NLA - Washer, Nylon (13/32 x 1 x 1/4")	1	2
5	Screw, Shoulder Hex Socket Head (3/8" x 3-1/2", 5/16-18)	1	1
6	Washer, Steel (11/32 x 11/16 x 1/16")	1	1
7	Locknut (5/16-18)	1	2
8	Screw, Shoulder Hex Socket Head (3/8 x 1-3/4", 5/16-18)	1	1
9	Washer, Plain (1/4 x 9/16 x 1/16")	1	1
10	Washer, Flat (5/16 x 5/8 x 1/16")	1	1

NLA - Kit, Tilt Actuator Motor Mounting Hardware

N/A

A ,D

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 4-11
B	Due to NEW Installation procedures, refer to the Tilt Actuator Replacement Instructions included with the Kit for assistance.
C	Includes the Tilt Conventional Actuator Motor, Bushings, Installation Assembly Tool, Slotted Spring Pin, Silicon Lubricant, Warning Label and Instructions. Components are not sold separately.
D	No Longer Available. See page titled "Tilt Actuator Motor and Mounting Hardware After 4/1/13". Part #1153721 was replaced with 1180313.
E	Includes Part #1190604 Supplemental Power Wheelchair Warnings/Wear and Tear Information Owner's Manual.
