Counterweight & Sensor Attaching Hardware

Print this page

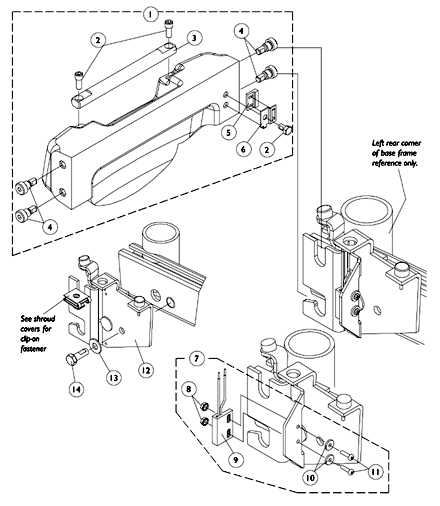

Counterweight and Sensor Attaching Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1091522	NLA - Counter Weight Assembly	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1086944	NLA - Screw, Socket Head (5/16-18 x 3/4")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1091523	NLA - Handle, Counter Weight	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1086322	Screw, Shoulder Hex Socket Head (1/2 x 3/8", 3/8-16)	1	4	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1024001	Sensor, Actuator Switch	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1094385	NLA - Bracket, Sensor Attaching, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1091528	NLA - Hardware, Attaching, Sensor Cable	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	P0870X000	Nut, Hex Keps (#4-40)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1092913	NLA - Cable, Drive Lockout Sensor	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	16348X007	Rivet Washer (1/8 x 3/8 x 1/16")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1074128	Screw, Phillips Pan Head (#4-40 x 7/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1091520	NLA - Bracket with Stem Bumpers, Counter Weight Support - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1091521	NLA - Bracket with Stem Bumpers, Counter Weight Support - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1074133	Washer, Steel (5/16 x 3/4 x 1/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1070462	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Items 2-6.
B	Includes Items 9-11.

Catalog Literature

Parts Books for Arrow® FWD
