Swing Arms & Suspension Attaching Hardware

Print this page

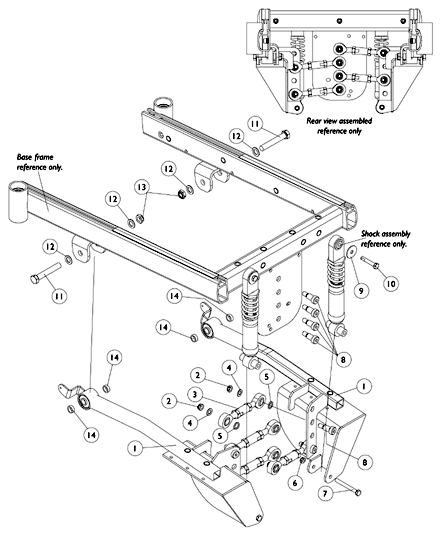

Swing Arms and Suspension Attaching Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1086287	NLA - Swing Arm w/ Rubber Bushing Assembly, Black - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1086288	NLA - Swing Arm w/ Rubber Bushing Assembly, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1028486	Locknut, Low Profile (3/8-16)	1	8	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1086324	NLA - Tie Rod Assembly	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1065214	Washer, Flat (3/8 x 11/16 x 1/16")	1	8	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1092408	NLA - Washer, Steel (1/2 x 11/16 x 3/32")	1	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1028769	Locknut (5/16-18)	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1042486	Screw, Hex Head (5/16-18 x 2-3/4")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1086313	NLA - Screw, Shoulder Hex Socket Head (1/2 x 3/4", 3/8-16)	1	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1092409	Washer, Steel (5/16 x 1-1/4 x 1/16")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1043627	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1-3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1090783	NLA - Screw, Hex Head (1/2-13 x 3")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1026174	Washer (1/2 x 7/8 x 3/64")	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1050169	NLA - Locknut (1/2-13)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1086328	NLA - Spacer (1/2 x 11/16 x 1/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
