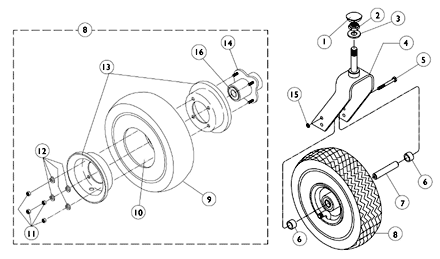

Casters & Forks (9")

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1027600	NLA - Cap, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1028550	Locknut (5/8-18)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1041444	Washer, Nylon (5/8 x 1-5/16 x 1/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	8881039754	NLA - Fork and Stem Assembly (9" and 10" Caster)	1	1	N/A	A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027730	NLA - Screw, Hex Head (5/16-24 x 5")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1028832	Spacer (5/8 x 7/8 x 1/2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1028833	Reducer, Axle	1	1	$25.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1041498	NLA - Wheel Assembly, Pneumatic (9" x 2-3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1029871	NLA - Wheel Assembly, Foam Filled (9 x 2-3/4")	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1027418	NLA - Tire, Pneumatic, Grey (9 x 2-3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1028896	NLA - Tire w/ Foam Fill Insert, Grey (9" x 2-3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1027417	Tube, Pneumatic Inner (9 x 2-3/4")	1	1	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1024426	NLA - Nut, Hex (5/16-24)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1024442	NLA - Washer, Lock (5/16 x 9/16 x 1/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025399	NLA - Kit, Rim, Outer/Inner Half w/ Hardware (9")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1013460	NLA - Kit, Rim, Outer/Inner Half w/ Hardware (10")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1013466	Hub with Bearings Assembly	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	7930330	NLA - Locknut (5/16-24)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1015610	Bearing with Grip Ring (5/8")	1	2	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify frame color when ordering.
B	Tire comes with insert molded inside.
C	250 pound standard and heavy duty.

Catalog Literature

Parts Books for Arrow® FWD
