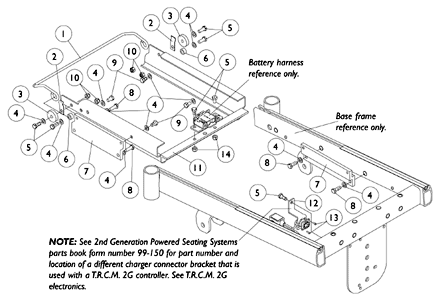

Battery Box Attaching Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1049549	NLA - Retainer Bar, Battery Box	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1049550	NLA - Clip, Retainer	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1091544	NLA - Stop, Battery Bracket, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025704	Washer, Flat (5/16 x 5/8 x 1/16")	1	12	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1039860	Screw, Hex Head w/ Patch (5/16-18 x 3/4")	1	7	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1092911	NLA - Spacer (3/8 x 5/8 x 11/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1086303	NLA - Support, Front Battery	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1070462	NLA - Screw, Hex Head w/ Patch (5/16-18 x 7/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1061922	NLA - Screw, Hex Head w/ Patch (5/16-18 x 1/2")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1028769	Locknut (5/16-18)	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1086974	Frame, Battery Box Support, Black	1	1	$192.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1093308	NLA - Bracket, Charger Connector, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1087226	NLA - Screw, Phillips Pan Head Tap (#4-24 x 3/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1026158	Locknut (5/16-18)	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
