Battery Box - Front

Print this page

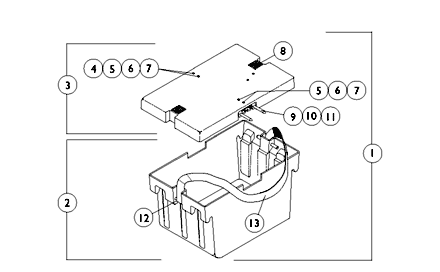

Front Battery Box

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1039705	Battery Box Assembly w/ Black Battery Connector, Front	1	1	$278.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1041439	Battery Box Bottom Assembly, Front	1	1	$115.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1041432	Battery Box Lid Assembly w/ Black Battery Connector, Front	1	1	$174.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1041420	Bracket, Connector Guide Mounting	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1043599	NLA - Washer, Flat (5/32 x 3/8 x 1/32")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1039773	NLA - Screw, Phillips Pan Head (#6-32 x 1-1/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	P0870X050	NLA - Nut, Keps (#6-32)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1070504	NLA - Fastener, Hook with Adhesive Back (1" W x 1" L)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1041421	Pin, Connector Guide	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1041422	Ring, Retaining	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1041420	Bracket, Connector Guide Mounting	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1041433	NLA - Pin, Handle	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1041435	Handle, Strap, Front Battery Box, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1041426	NLA - Harness, Front Wiring	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	Replace with Item 3 part # 1041432 battery box lid assembly.

Catalog Literature

Parts Books for Arrow® FWD
