Battery Box - Rear

Print this page

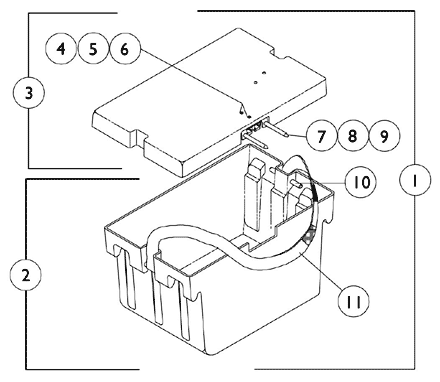

Rear Battery Box

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1041440	Battery Box Assembly w/ Black Battery Connector, Rear	1	1	$300.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1041438	Battery Box Bottom Assembly, Rear	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1085414	Battery Box Lid Assembly w/ Black Battery Connector, Rear	1	1	$187.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1039773	NLA - Screw, Phillips Pan Head (#6-32 x 1-1/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1043599	NLA - Washer, Flat (5/32 x 3/8 x 1/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	P0870X050	NLA - Nut, Keps (#6-32)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1041421	Pin, Connector Guide	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1041422	Ring, Retaining	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1041420	Bracket, Connector Guide Mounting	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1041433	NLA - Pin, Handle	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1041434	Handle, Strap, Rear Battery Box, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	50000X166	NLA - Fuse - Buss 2-1/4" L (60 AMP)	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1089385	Fuse, MIDI (Non-G/B & G/B) (80 AMP)	1	1	$29.00	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1039726	NLA - Harness, Rear Wiring	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Replace with Item 3 part # 1085414 battery box lid assembly.
B	Not Shown
C	Before 6/15/00
D	After 6/14/00

Catalog Literature

Parts Books for Arrow® FWD
