Electronics - MKIV Controller - Programmer & Attaching Hardware

Print this page

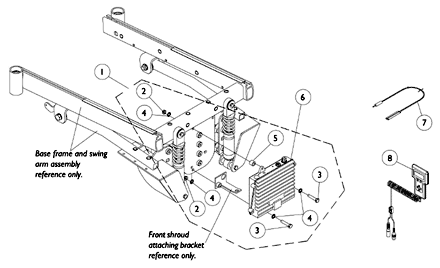

MKIV Controller and Attaching Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1092916	NLA - Hardware, Controller Attaching	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	60290X002	Locknut (5/16-18)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1013560	NLA - Screw, Hex Head (5/16-18 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1023263	NLA - Washer, Internal Tooth (M8)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1093999	NLA - Spacer, Controller Attaching, Black (3/8 x 5/8 x 1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1105707	NLA - Controller, MKIV Quad Pulse	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1020818	Switch, Red Flex Ribbon (Tape) Reset	1	1	$177.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1123276	Kit, Switch, Black Egg Reset w/ Hook/Loop Adhesive Back Fastener & Attaching Screws (EGSBLK)	1	1	$96.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1109091	NLA - Programmer, Remote	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1064404	NLA - Virtual Service Modem Kit	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1091631	NLA - Virtual Service Software Kit	1	1	N/A	B ,E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1103051	NLA - MKIV One 2 One Software Kit	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1046117	NLA - Printer and Interface	1	1	N/A	B ,F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1095204	NLA - Cable, Virtual Service, Charger/Modem	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1091980	NLA - Disk, 3.5 H.D. Floppy with V.S. Software	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1091637	NLA - Adaptor, Null Modem	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1091636	NLA - Service Manual - V.S. Software Kit	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1026572	NLA - Paper, Printer	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1027280	NLA - Harness, Printer Wiring	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Items 2-5.
B	Not Shown
C	It is recommended that Items 2-4 be ordered when a new controller is needed for chairs built before 4/12/01.
D	Part number 1095204 is available for individual sale
E	Part numbers 1091980, 1091637, 1091636 and 1095204 are available for individual sale
F	Part numbers 1026572 and 1027280 are available for individual sale
G	Not Shown. After 5/23/04 the Egg Reset Switch became available as a service part and can be used as a direct replacement for the tape reset switch part # 1020818.
