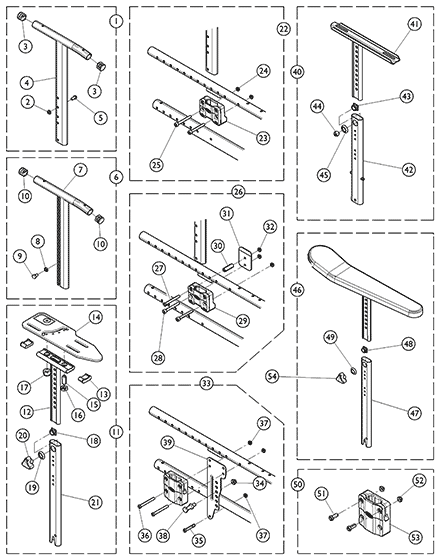

Arms - T Arm Component Kits

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1182260

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Locknut (M6 x 1)	1	1
3	Plug Button, Black (3/4")	1	2
4	Tube, Armrest - Right	1	1
5	Screw, Socket Button Head (M6 x 1 x 12mm)	1	1

Kit, T-Arm Post - Right

Create/add to Wishlist

1182261

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Locknut (M6 x 1)	1	1
3	Plug Button, Black (3/4")	1	2
4	Tube, Armrest, Black - Left	1	1
5	Screw, Socket Button Head (M6 x 1 x 12mm)	1	1

Kit, T-Arm Post - Left

Create/add to Wishlist

1182267

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Plug Button, Black (3/4")	1	2
8	Nut (M6)	1	1
9	Screw (M6 x 1 x 10mm)	1	1
10	Support, T-Arm	1	1

Kit, T-Arm Post w/ Hardware - Left

Create/add to Wishlist

1182269

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Support, T-Arm - Right	1	1
8	Nut (M6)	1	1
9	Screw (M6 x 1 x 10mm)	1	1
10	Plug Button, Black (3/4")	1	2

Kit, T-Arm Post w/ Hardware - Right

Create/add to Wishlist

1182272

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Stop (M10 x 1.5 x 23mm)	1	1
16	Nut, Low (M10 x 1.5)	1	1
17	Nut, Cap, Self Lock	1	1
18	Nut, Square, Armrest	1	1
19	Bushing, Armrest	1	1
20	Screw, Ball (7.5 mm)	1	1
21	Tube, Support, Comfort/Hemi Arm	1	1
12	Support, Hemi Arm - Right	1	1
13	Cap, Plastic, Arm Support	1	2
14	Support, Armpad, Hemi - Right	1	1

Kit, Hemi Arm Post w/ Hardware - Right

Create/add to Wishlist

1182273

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	Support, Armpad, Hemi - Left	1	1
13	Cap, Plastic, Arm Support	1	2
14	Support, Hemi Arm - Left	1	1
15	Screw, Stop (M10 x 1.5 x 23mm)	1	1
16	Nut, Low (M10 x 1.5)	1	1
17	Nut, Cap, Self Lock	1	1
18	Nut, Square, Armrest	1	1
19	Bushing, Armrest	1	1
20	Screw, Ball (7.5 mm)	1	1
21	Tube, Support, Comfort/Hemi Arm	1	1

Kit, Hemi Arm Post w/ Hardware - Left

Create/add to Wishlist

1430421

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
23	NLA - Support, Armrest	1	1
24	NLA - Locknut (M6 x 1)	1	2
25	Screw, Socket Head (M6 x 50)	1	2
8	NLA - Locknut (M6 x 1)	1	2
9	NLA - Support, Armrest	1	1
25	Screw, Socket Head (M6 x 50)	1	2
7	NLA - Support, Armrest	1	1
11	Screw, Socket Head (M6 x 50)	1	2
13	NLA - Locknut (M6 x 1)	1	2

Kit, Attaching Hardware, T-Arm

$27.00

Create/add to Wishlist

1532575

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	Screw, Socket Button Head (M6 x 53mm)	1	1
28	Screw, Socket Head (M6 x 50)	1	2
29	NLA - Support, Armrest	1	1
30	Spacer, Nylon	1	1
31	Support, T Arm, Heavy Duty	1	1
32	NLA - Locknut (M6 x 1)	1	3

Kit, Attaching Hardware, T-Arm

Create/add to Wishlist

1440953

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
34	NLA - Locknut (M8 x 1.25)	1	1
35	Screw, Socket Head, Cap (M6 x 35mm)	1	1
36	Screw, Socket Button Head (M6 x 53mm)	1	2
37	NLA - Locknut (M6 x 1)	1	3
38	Bolt, Double Headed	1	1
39	Plate, Attaching	1	1

Kit, Hardware, Attaching, Comfort Arm (Right/Left)

Create/add to Wishlist

1182264

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
41	Arm Pad Mounting Assembly - Right	1	1
42	Tube, Mounting, Adjustable	1	1
43	Nut, Square, Armrest	1	1
44	Screw, Socket Head (M12 x 12.5)	1	1
45	Bushing, Armrest	1	1

Kit, T-Arm Post w/ Hardware - Right

Create/add to Wishlist

1182265

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
41	Arm Pad Mounting Assembly - Left	1	1
42	Tube, Mounting, Adjustable	1	1
43	Nut, Square, Armrest	1	1
44	Screw, Socket Head (M12 x 12.5)	1	1
45	Bushing, Armrest	1	1

Kit, T-Arm Post w/ Hardware - Left

Create/add to Wishlist

1440895

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
47	Tube, Support, Comfort/Hemi Arm	1	1
48	Nut, Square, Armrest	1	1
49	Bushing, Armrest	1	1

Kit, Comfort Arm Post w/ Hardware

Create/add to Wishlist

1440952

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
51	Screw, Socket, Button Head (M6 x 16mm)	1	2
52	NLA - Locknut (M6 x 1)	1	2
53	Support, Armrest	1	1

Kit, Central Arm Support, Comfort Arm

Create/add to Wishlist

1434623

Screw, Ball (7.5 mm)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2, 3, 4, and 5.
B	Includes items 7, 8, 9, and 10.
C	Includes items 12 - 21.
D	Includes items 23, 24, and 25.
E	Includes items 27 - 32.
F	Includes items 34 - 39.
G	Includes items 41 - 45.
H	Includes items 47, 48, and 49.
I	Includes items 51, 52, and 53.

Catalog Literature

Parts Books for MyOn® - Canada MyOn® - Active - Canada MyOn® - Junior - Canada
