Seat Width

15" W

16" W

17" W

18" W

19" W

20" W

Fixed Depth (FXDDPTH)

D16

1530032

MSRP: $433.00

1530033

MSRP: $433.00

1530034

MSRP: $392.00

1530035

1530036

MSRP: $433.00

1530037

MSRP: $433.00

D17

1168733

1168734

MSRP: $433.00

1168735

MSRP: $433.00

1168736

1168737

1168738

D18

1530038

1530052

MSRP: $433.00

1530053

1530054

MSRP: $433.00

1530055

MSRP: $433.00

1530056

MSRP: $433.00

D19

1172255

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (15" W x 18" D)	1	2

1172256

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (17" W x 18" D)	1	2

1172257

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (17" W x 18" D)	1	2

MSRP: $135.00

1172258

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
Crossbrace, Black (18" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $135.00

1172259

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (19" W x 18" D)	1	2

1172260

Part/Kit Description	Qty/Pkg	Qty/Asbly
Cap, Extension, Seat Rail (1")	1	2
Extension, Seat Rail (1")	1	2
Washer, Plastic	1	1
Crossbrace, Black (20" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	4
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	2
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $128.00

D20

1172261

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (15" W x 18" D)	1	2

1172262

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
Crossbrace, Black (16" W x 18 D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

1172263

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (17" W x 18" D)	1	2

MSRP: $135.00

1172264

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
Crossbrace, Black (18" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $135.00

1172265

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Plastic	1	1
Extension, Seat Rail (2")	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2
Crossbar (19" W x 18" D)	1	2

1172266

Part/Kit Description	Qty/Pkg	Qty/Asbly
Extension, Seat Rail (2")	1	2
Washer, Plastic	1	1
Crossbrace, Black (20" W x 18" D)	1	2
NLA - Locknut (M8 x 1.25)	1	1
NLA - Screw, Socket Button Head (M6 x 40mm)	1	6
NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	1
NLA - Washer (M8 x 16mm x 1.5mm)	1	2
NLA - Plug Button	1	4
Link, Pivot, Crossbrace (18 - 20" W)	1	2
NLA - Locknut (M6 x 1)	1	6
Clamp, Saddle	1	2

MSRP: $135.00

Adjustable Depth (ADJDPTH)

SDR1820

1530038

1530052

MSRP: $433.00

1530053

1530054

MSRP: $433.00

1530055

MSRP: $433.00

1530056

MSRP: $433.00

Create/add to Wishlist

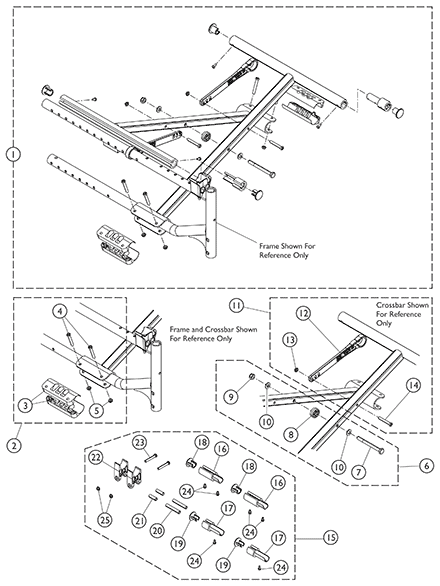

#1 Crossbrace Assembly w/ Hardware - Myon

N/A

Create/add to Wishlist

2

1173765

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Clamp, Saddle, Crossbar	1	2
3	Clamp, Saddle	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
3	Clamp, Saddle, Crossbar	1	1
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
5	NLA - Locknut (M6 x 1)	1	2
3	Clamp, Saddle, Crossbar	1	2
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4
3	Clamp, Saddle	1	2
5	NLA - Locknut (M6 x 1)	1	4
6	NLA - Locknut (M6 x 1)	1	4
4	NLA - Screw, Socket Button Head (M6 x 40mm)	1	4
5	NLA - Locknut (M6 x 1)	1	4

Kit, Saddle Clamp w/ Hardware (Pair)

1

$20.00

A

Create/add to Wishlist

6

1173771

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	NLA - Washer (M8 x 16mm x 1.5mm)	1	4
11	NLA - Locknut (M8 x 1.25)	1	2
7	Washer, Plastic	1	2
8	NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2
9	NLA - Washer (M8 x 16mm x 1.5mm)	1	4
10	NLA - Locknut (M8 x 1.25)	1	2
8	Washer, Plastic	1	2
9	NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2

NLA - Kit, Crossbrace Bolt w/ Hardware (Pair)

1

B

Create/add to Wishlist

11

1173779

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
12	NLA - Link, Pivot, Crossbrace (15 - 17" W)	1	2
13	NLA - Locknut (M6 x 1)	1	2
14	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
15	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
14	NLA - Locknut (M6 x 1)	1	2

NLA - Kit, Pivot Link w/ Hardware (15 - 17" W) (Pair)

1

N/A

C

Create/add to Wishlist

11

1173767

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	NLA - Locknut (M6 x 1)	1	2
12	Link, Pivot, Crossbrace (18 - 20" W)	1	2
13	NLA - Locknut (M6 x 1)	1	2
14	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
13	Link, Pivot, Crossbrace (18 - 20" W)	1	2
15	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2

NLA - Kit, Pivot Link w/ Hardware (18 - 20" W) (Pair)

1

N/A

C

Create/add to Wishlist

15

1172274

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
17	Extension, Seat Rail (1")	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
20	Rod, Upholstery (2")	1	2
22	Guide, Seat	1	2
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
	Instruction Sheet, Seat Rail Extensions	1	1
14	Extension, Seat Rail (2")	1	2
17	Cap, Extension, Seat Rail (1")	1	2
18	Rod, Upholstery (2")	1	2
19	Rod, Upholstery (1")	1	2
23	NLA - Locknut (M6 x 1)	1	2
18	NLA - Plug Button	1	2
18	NLA - Plug Button	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
16	Extension, Seat Rail (2")	1	2
17	Extension, Seat Rail (1")	1	2
18	NLA - Plug Button	1	2
19	Cap, Extension, Seat Rail (1")	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
22	Guide, Seat	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
27	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
19	Extension, Seat Rail (2")	1	2
20	Extension, Seat Rail (1")	1	2
21	NLA - Plug Button	1	2
22	Cap, Extension, Seat Rail (1")	1	2
23	Rod, Upholstery (2")	1	2
24	Rod, Upholstery (1")	1	2
25	Guide, Seat	1	2
26	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
28	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
19	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
20	NLA - Locknut (M6 x 1)	1	2
11	Extension, Seat Rail (2")	1	2
12	Extension, Seat Rail (1")	1	2
13	NLA - Plug Button	1	2
14	Cap, Extension, Seat Rail (1")	1	2
15	Rod, Upholstery (2")	1	2
16	Rod, Upholstery (1")	1	2
17	Guide, Seat	1	2
18	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
16	Extension, Seat Rail (2")	1	2
17	Extension, Seat Rail (1")	1	2
18	NLA - Plug Button	1	2
19	Cap, Extension, Seat Rail (1")	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
22	Guide, Seat	1	2
23	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
21	Rod, Upholstery (1")	1	2
16	Extension, Seat Rail (2")	1	2
21	NLA - Screw, Socket Button Head (M6 x 40mm)	1	2
	Instruction Sheet, Seat Rail Extensions	1	1
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
22	Guide, Seat	1	2
20	Rod, Upholstery (2")	1	2
21	Rod, Upholstery (1")	1	2
15	Extension, Seat Rail (1")	1	2
22	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
19	Cap, Extension, Seat Rail (1")	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6
25	NLA - Locknut (M6 x 1)	1	2
20	Guide, Seat	1	2
17	Extension, Seat Rail (1")	1	2
16	NLA - Plug Button	1	2
16	Extension, Seat Rail (2")	1	2
19	Cap, Extension, Seat Rail (1")	1	2

Kit, Seat Rail Extensions (16 - 18" D)

1

$150.00

D

Create/add to Wishlist

15

1173066

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
16	Extension, Seat Rail (2")	1	2
17	Extension, Seat Rail (1")	1	2
18	NLA - Plug Button	1	2
19	Cap, Extension, Seat Rail (1")	1	2
20	Rod, Upholstery (20" D)	1	2
21	Rod, Upholstery (19" D)	1	2
24	NLA - Screw, Phillips Pan Head (M3.5 x .6 x 9.5mm)	1	6

Kit, Seat Rail Extensions (18 - 20" D)

1

E

Note Code	Definition
A	Includes items 3, 4, and 5.
B	Kit includes items 7 - 10.
C	Kit includes items 12, 13, and 14.
D	Kit includes items 16 - 25.
E	Kit includes items 16 - 21, and item 24.

Crossbrace Assembly - Myon (15 - 20" W)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Crossbrace Assembly - Myon (15 - 20" W)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
