Canes - Back - Basic Tilt & Tilt Only

Print this page

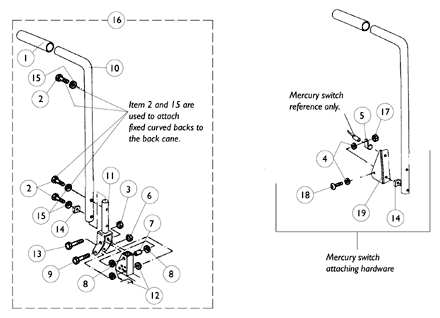

Back Cane Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	0014500	NLA - Grip, Hand	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	0053006	NLA - Screw, Hex Head (1/4-20 x 3/4")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930333	Locknut (1/4-20)	25	1	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	0050006	NLA - Lockwasher, External Star (1/4")	2	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	0062800	NLA - Bracket, Cable/Wire Mounting, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	0054906	Locknut, High Profile (5/16-18)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	0060600	Bushing (7/16 x 5/16 x 1-1/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	0055800	NLA - Washer, Nylon (7/16 x 3/4 x 3/32")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	0055506	NLA - Screw, Button Head, Socket (5/16-18 x 2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	0309902	NLA - Back Cane Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	0116702	NLA - Post, Mounting	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	0054700	NLA - Washer, Nylon (5/16 x 1/2 x 1/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	0052606	NLA - Screw, Hex Head (1/4-20 x 2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	0049824	NLA - Spacer, Coved (1/4 x 3/4 x 7/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	0050506	NLA - Lockwasher, High Collar, Split (1/4")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1072788	NLA - Back Cane Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	7930332	NLA - Locknut, High Profile (#10-32)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0139306	NLA - Screw, Socket Button Head (#10-32 x 3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	0002902	NLA - Bracket, Mounting, Black - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
