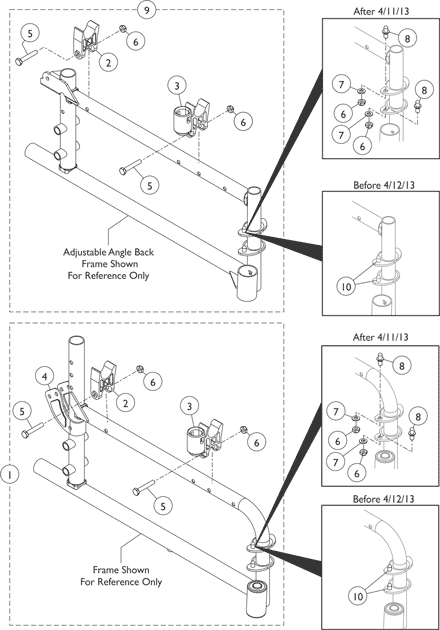

Frames - Side - Hardware - 9000SL

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1091104

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	H-Block	1	2
3	H-Block with Socket Cup	1	2
4	NLA - Bracket, Armrest, Chrome	1	2
5	Screw, Hex Head (1/4-20 x 1-1/2")	1	2
6	Locknut (1/4-20)	1	2

NLA - Kit, Side Frame Hardware, Chrome, (Pair)

N/A

Create/add to Wishlist

1091105

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	H-Block	1	2
3	H-Block with Socket Cup	1	2
4	Bracket, Armrest, Black	1	2
5	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
6	Locknut (1/4-20)	1	4
7	Washer, Plain (1/4 x 1/2 x 9/16")	1	4
8	Pin, Hinge	1	4

Kit, Side Frame Hardware, Black, (Pair)

$57.00

Create/add to Wishlist

1121091

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	H-Block	1	2
3	H-Block with Socket Cup	1	2
4	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
5	Locknut (1/4-20)	1	4
6	Washer, Plain (1/4 x 1/2 x 9/16")	1	4
7	Pin, Hinge	1	4
2	H-Block	1	2
3	H-Block with Socket Cup	1	2
5	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
6	Locknut (1/4-20)	1	4
7	Washer, Plain (1/4 x 1/2 x 9/16")	1	4
8	Pin, Hinge	1	4

Kit, Side Frame Hardware (Pair)

$49.00

Create/add to Wishlist

1107805

H-Block

$8.00

Create/add to Wishlist

1109938

H-Block with Socket Cup

$11.00

Create/add to Wishlist

1056110

NLA - Bracket, Armrest, Chrome

N/A

Create/add to Wishlist

1066261

Bracket, Armrest, Black

$8.00

Create/add to Wishlist

16720X004

Screw, Hex Head (1/4-20 x 1-1/2")

$10.00

Create/add to Wishlist

60275X000

Locknut (1/4-20)

$10.00

Create/add to Wishlist

1096781

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Wrench, Allen (3/32")	1	1
15	Cap, Threaded	1	4
15	Washer, Locking Split (#10)	1	4
15	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
15	NLA - Wrench, Allen (3/32")	1	1
	Washer, Locking Split (#10)	1	4
	Washer, Locking Split (#10)	1	4
	Cap, Threaded	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Cap, Threaded	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Cap, Threaded	1	4
	Washer, Locking Split (#10)	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Washer, Locking Split (#10)	1	4
	NLA - Wrench, Allen (3/32")	1	1
	Screw, Socket Button Head Cap, Regulator (8-32 x 3/8")	1	4
	Cap, Threaded	1	4

Kit, Hinge Pin Replacement Hardware (Pair)

$26.00

J ,J1

Create/add to Wishlist

1058139

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
24	Locknut (1/4-20)	1	1
25	Cup, Socket Pivot	1	1
26	Locknut (1/4-20)	1	1
27	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
22	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
23	Locknut (1/4-20)	1	1
15	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
16	Cup, Socket Pivot	1	1
17	Locknut (1/4-20)	1	1
15	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
16	Cup, Socket Pivot	1	1
17	Locknut (1/4-20)	1	1
12	Cup, Socket Pivot	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Locknut (1/4-20)	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Cup, Socket Pivot	1	1
15	Locknut (1/4-20)	1	1
14	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
15	Cup, Socket Pivot	1	1
16	Locknut (1/4-20)	1	1
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
24	Locknut (1/4-20)	1	1
21	Cup, Socket Pivot	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Cup, Socket Pivot	1	1
15	Locknut (1/4-20)	1	1
	Cup, Socket Pivot	1	1
	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
	Locknut (1/4-20)	1	1
	Cup, Socket Pivot	1	1
	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
	Locknut (1/4-20)	1	1
	Locknut (1/4-20)	1	1
	Cup, Socket Pivot	1	1
	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
25	Cup, Socket Pivot	1	1
26	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
27	Locknut (1/4-20)	1	1
21	Cup, Socket Pivot	1	1
22	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
23	Locknut (1/4-20)	1	1
21	Locknut (1/4-20)	1	1
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
21	Locknut (1/4-20)	1	1
22	Cup, Socket Pivot	1	1
23	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
25	Cup, Socket Pivot	1	1
26	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
27	Locknut (1/4-20)	1	1
13	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
14	Cup, Socket Pivot	1	1
15	Locknut (1/4-20)	1	1
24	NLA - Screw, Hex Head (1/4-20 x 1-3/8")	1	1
25	Locknut (1/4-20)	1	1
23	Cup, Socket Pivot	1	1

Kit, Armrest Hardware

$16.00

C ,D

Create/add to Wishlist

1091072

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
26	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
27	Locknut (1/4-20)	1	6
28	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
29	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
11	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
12	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
13	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
14	Locknut (1/4-20)	1	6
	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
	Locknut (1/4-20)	1	6
18	NLA - Screw, Socket Button Head (1/4-20 x 1-7/16")	1	2
19	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
20	Locknut (1/4-20)	1	6
21	Spacer, Coved (1/4 x 3/4 x 11/32")	1	4

Hardware, Armrest

$38.00

C ,E

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 6.
B	To be used on 9000SL with Adjustable Angle Back. Includes items 2, 3 and 5 - 8.
C	Not Shown
D	To be used on Conventional Style Arms.
E	To be used on Space Saver Arms.
F	For attaching hardware, see category titled, "Back Canes and Hardware."
G	Due to design change, H-Blocks should be ordered in pairs for chairs built before 6/1/02.
H	Used on frames before 4/12/13.
I	Includes items 2 - 8. Hardware is used for color Side Frames also.
J	Hinge Pin Replacement Hardware Kit is only used on Side Frames w/ welded-on Hinge Pins manufactured before 4/12/13. Side Frames after 4/11/13 have Hinge Pin Saddle Plates w/ square holes to attach REMOVABLE Non-Welded Hinge Pins.
J1	Side Frames ordered after 4/11/13 require new Side Frame Hardware that will include the removable Hinge Pins also. Removable Hinge Pins are not sold separately.
