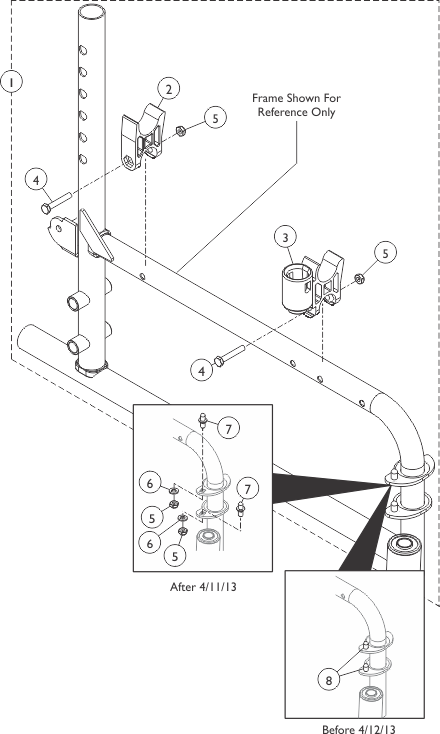

Frames - Side - Hardware - 9000XT & 9000XDT

Assembly Part Notes

Note Code Definition
A Includes items 2 - 7. Hardware is used for color Side Frames also.
B Not Shown.
C Hinge Pin Replacement Hardware Kit is only used on Side Frames w/ welded-on Hinge Pins manufactured before 4/12/13. Side Frames after 4/11/13 have Hinge Pin Saddle Plates w/ square holes to attach REMOVABLE Non-Welded Hinge Pins.
C1 Side Frames ordered after 4/11/13 require new Side Frame Hardware that will include the removable Hinge Pins also. Removable Hinge Pins are not sold separately.
