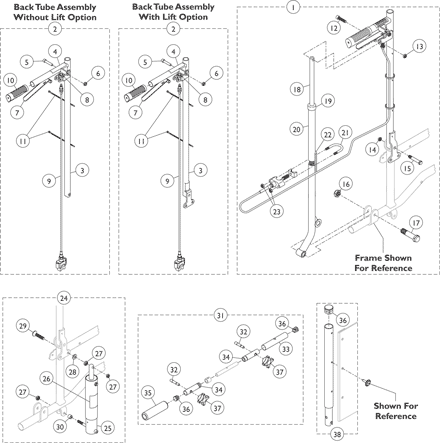

NLA - Recliner Back Assembly w/ Lift Option, Chrome (23" H) (Pair)

2

1

N/A

D ,J ,Q

Create/add to Wishlist

1

1142778

NLA - Recliner Back Assembly w/ Lift Option, Black (23" H) (Pair)

2

1

N/A

D ,K ,Q

Create/add to Wishlist

1

8881180815

Recliner Back Assembly w/ Lift Option, Color (23" H) (Pair)

1

$384.00

D ,M ,N

Create/add to Wishlist

1

1074482

NLA - Recliner Back Assembly w/o Lift Option, Chrome (23" H) (Pair)

2

1

N/A

D ,J ,P ,R

Create/add to Wishlist

1

1142779

NLA - Recliner Back Assembly w/o Lift Option, Black (23" H) (Pair)

2

1

N/A

D ,K ,R

Create/add to Wishlist

1

8881180810

Recliner Back Assembly w/o Lift Option, Color (23" H) (Pair)

1

$384.00

D ,M ,N

Create/add to Wishlist

2

1074475

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Back Tube, Black - Right	1	1
4	Label, Caution	1	1
5	Screw, Socket Head (5/16-18 x 1-1/2")	1	1
6	Locknut (5/16-18)	1	1
7	Lever, Brake Release, Black	1	1
8	Fastener, Spring Grip	1	1
9	Cable Assembly	1	1
9	Nut, Hex (5/16"-18)	1	2
9	Housing, Support	1	1
9	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
9	NLA - Sector, Threaded	1	1
9	Tubing, Heatshrink Advhesive (1-1/2")	1	1
9	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
10	Grip, Hand (6")	1	1
11	Tie Wrap (5-5/8" L)	1	2

NLA - Back Tube w/ Cable Assembly, Chrome - Right

1

N/A

A

Create/add to Wishlist

2

1074476

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
9	NLA - Sector, Threaded	1	1
9	Tubing, Heatshrink Advhesive (1-1/2")	1	1
9	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
10	Grip, Hand (6")	1	1
11	Tie Wrap (5-5/8" L)	1	2
3	Back Tube, Chrome - Left	1	1
4	Label, Caution	1	1
5	Screw, Socket Head (5/16-18 x 1-1/2")	1	1
6	Locknut (5/16-18)	1	1
7	Lever, Brake Release, Black	1	1
8	Fastener, Spring Grip	1	1
9	Cable Assembly	1	1
9	Nut, Hex (5/16"-18)	1	2
9	Housing, Support	1	1

NLA - Back Tube w/ Cable Assembly, Chrome - Left

1

A

Create/add to Wishlist

2

1074480

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Back Tube, Chrome - Right	1	1
4	Label, Caution	1	1
5	Screw, Socket Head (5/16-18 x 1-1/2")	1	1
6	Locknut (5/16-18)	1	1
7	Lever, Brake Release, Black	1	1
8	Fastener, Spring Grip	1	1
9	Cable Assembly	1	1
9	Nut, Hex (5/16"-18)	1	2
9	Housing, Support	1	1
9	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
9	NLA - Sector, Threaded	1	1
9	Tubing, Heatshrink Advhesive (1-1/2")	1	1
9	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
10	Grip, Hand (6")	1	1
11	Tie Wrap (5-5/8" L)	1	2

NLA - Back Tube w/ Cable Assembly, Chrome - Right

1

B

Create/add to Wishlist

2

1074481

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Back Tube, Chrome - Left	1	1
4	Label, Caution	1	1
5	Screw, Socket Head (5/16-18 x 1-1/2")	1	1
6	Locknut (5/16-18)	1	1
7	Lever, Brake Release, Black	1	1
8	Fastener, Spring Grip	1	1
9	Cable Assembly	1	1
9	Nut, Hex (5/16"-18)	1	2
9	Housing, Support	1	1
9	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
9	Tubing, Heatshrink Advhesive (1-1/2")	1	1
9	NLA - Sector, Threaded	1	1
9	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
10	Grip, Hand (6")	1	1
11	Tie Wrap (5-5/8" L)	1	2

NLA - Back Tube w/ Cable Assembly, Chrome - Left

1

B

Create/add to Wishlist

5

1021344

Screw, Socket Head (5/16-18 x 1-1/2")

1

$8.00

Create/add to Wishlist

6

60290X002

Locknut (5/16-18)

1

$10.00

Create/add to Wishlist

7

1021085

Lever, Brake Release, Black

1

$10.00

Create/add to Wishlist

8

1071676

Fastener, Spring Grip

1

$8.00

Create/add to Wishlist

9

1074471

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
11	Cable Assembly	1	1
11	Nut, Hex (5/16"-18)	1	2
11	Housing, Support	1	1
11	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
11	NLA - Sector, Threaded	1	1
11	Tubing, Heatshrink Advhesive (1-1/2")	1	1
11	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	Cable Assembly	1	1
	Nut, Hex (5/16"-18)	1	2
	Housing, Support	1	1
	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
	NLA - Sector, Threaded	1	1
	Tubing, Heatshrink Advhesive (1-1/2")	1	1
	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	Cable Assembly	1	1
	Nut, Hex (5/16"-18)	1	2
	Housing, Support	1	1
	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
	NLA - Sector, Threaded	1	1
	Tubing, Heatshrink Advhesive (1-1/2")	1	1
	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	NLA - Spring, Compression (27/64 x 1 x 3/64")	1	1
	Tubing, Heatshrink Advhesive (1-1/2")	1	1
	NLA - Nut, Swivel (5/16-18 x 21/32")	1	1
	Cable Assembly	1	1
	Nut, Hex (5/16"-18)	1	2
	Housing, Support	1	1
	NLA - Sector, Threaded	1	1

Cable and Housing Assembly

1

$40.00

C

Create/add to Wishlist

10

1021261

Grip, Hand (6")

1

$8.00

Create/add to Wishlist

11

1021260

Tie Wrap (5-5/8" L)

1

2

$8.00

Create/add to Wishlist

12

1021343

Screw, Socket Head (5/16-18 x 1-1/4")

1

Create/add to Wishlist

13

60290X002

Locknut (5/16-18)

1

$10.00

Create/add to Wishlist

14

60264X001

Locknut (5/16-24)

1

$8.00

Create/add to Wishlist

15

1044762

Bolt, Pivot (5/16-24 x 1-7/8")

1

A

Create/add to Wishlist

15

1074647

Bolt, Pivot (5/16-24)

1

B

Create/add to Wishlist

16

1001979

Locknut (1/2-20)

1

$10.00

Create/add to Wishlist

17

1044195

Bolt, Pivot (1/2-20 x 1-3/4")

1

$7.00

Create/add to Wishlist

18

1042736

Rod, Locking

1

$32.00

Create/add to Wishlist

19

1024221

Anti-Rattle, Black

1

$8.00

Create/add to Wishlist

20

1070961

NLA - Tube, Recliner, Chrome

1

N/A

Create/add to Wishlist

20

1142776

NLA - Tube, Recliner, Black

1

N/A

L

Create/add to Wishlist

21

1023328

U-Bolt (1/4-20 x 1-13/16")

1

$8.00

Create/add to Wishlist

22

1023329

NLA - Plate Support

1

N/A

Create/add to Wishlist

23

1008882

Locknut (1/4-20)

1

2

$8.00

Create/add to Wishlist

24

1034176

Kit, Lift (Pair)

2

1

$303.00

E

Create/add to Wishlist

25

1021338

Spring and Housing Assembly

1

$67.00

Create/add to Wishlist

26

1022642

Label, Warning

1

Create/add to Wishlist

27

60290X002

Locknut (5/16-18)

1

3

$10.00

Create/add to Wishlist

28

40157X000

Washer, Steel (11/32 x 5/8 x 3/64")

1

$8.00

Create/add to Wishlist

29

1021337

NLA - Screw, Socket Flat Head (5/16-18 x 1-1/2")

1

N/A

Create/add to Wishlist

30

47330X003

Spacer (5/16 x 1/2 x 3/8")

1

$10.00

Create/add to Wishlist

31

1052597

NLA - Bar, Adjustable, Spreader, Chrome (14 - 15" W)

1

N/A

I

Create/add to Wishlist

31

8881181932

Bar, Adjustable, Spreader, Color (14 - 15" W)

1

$97.00

I ,S

Create/add to Wishlist

31

1021276

NLA - Bar, Adjustable, Spreader, Chrome (16 - 19" W)

1

N/A

I

Create/add to Wishlist

31

8881181931

Bar, Adjustable, Spreader, Color (16 - 19" W)

1

$97.00

I ,S

Create/add to Wishlist

31

1026736

NLA - Bar, Adjustable, Spreader, Chrome (20 - 22" W)

1

N/A

I

Create/add to Wishlist

31

8881181987

Bar, Adjustable, Spreader, Color (20 - 22" W)

1

$97.00

S ,I

Create/add to Wishlist

32

1021091

Stud (5/16-18 x 1-3/4")

1

2

$10.00

Create/add to Wishlist

34

1021353

NLA - Cover, Tube, Chrome (14 - 15" W)

1

N/A

F

Create/add to Wishlist

34

1021088

NLA - Cover, Tube, Chrome (16 - 19" W)

1

N/A

G ,H

Create/add to Wishlist

35

1016298

Grip, Push Handle

1

$8.00

F

Create/add to Wishlist

35

1016254

Grip, Push Handle

1

$9.00

G ,H

Create/add to Wishlist

36

1027097

Plug Button, Black (3/4")

1

2

$7.50

Create/add to Wishlist

37

1021092

Knob, Black

1

2

$8.00

Create/add to Wishlist

38

1054595

NLA - Headrest Extension Tube Assembly, Black

1

2

N/A

O

Create/add to Wishlist

38

8881181852

Headrest Extension Tube Assembly, Color

1

2

$19.00

N ,O

Create/add to Wishlist

See Chart

Added to Cart

Adjustment Tube		14 - 15" Wide		16 - 19" Wide		20 - 22" Wide
Right		Note-A 1021351- NLA		1021100- NLA		1026734- NLA
Left		Note-A 1021352- NLA		1021101- NLA		1026735 MSRP: $24.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Part #1021351 and 1021352 are no longer available as service parts individually. Must order item 31 as a replacement.

Item #33 Adjustment Tube

N/A

Note Code	Definition
A	For use on models with a Lift Option. Item #2 is not available for color frame models. Must order item #1
B	For use on models without a Lift Option. Item #2 is not available for color frame models. Must order item #1
C	Includes: Housing, Spring, Sector and Hardware.
D	Includes items 2 and 12-23.
E	Includes Items 25-30.
F	14 - 15" Wide Chairs. Item #34 is not available for color frame models. Must order item #31
G	16 - 19" Wide Chairs. Item #34 is not available for color frame models. Must order item #31
H	20 - 22" Wide Chairs.
I	Includes Items 32-37.
J	Before 3/6/06.
K	3/6/06 thru 4/11/13
L	Black Recliner Tube is only available with item #1 Recliner Back Assembly 8881180810 or 8881180815.
M	After 4/11/13
N	Specify 34P Black frame finish when ordering.
O	Includes item 36.
P	No Longer Available. Use part #1142779 as a replacement
Q	No Longer Available. See item #1 8881180815 and order 34P Black frame finish.
R	No Longer Available. See item #1 8881180810 and order 34P Black frame finish.
S	Specify 71P Silver Vein frame finish when ordering.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Canes - Back & Hardware - 9000XT Recliner

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist
