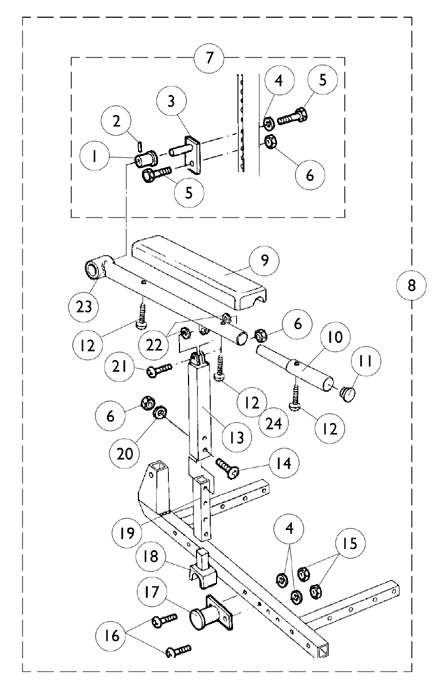

Arms - Basic Recline 4XP or Tilt/Recline & Recline Only
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 0061500 | NLA - Pin, Roll (3/16 x 5/8") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 0028502 | NLA - Mounting Plate and Pin | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 0050406 | Washer, Flat (1/4 x 5/8 x 1/16") | 1 | 1 |
$7.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 0053006 | NLA - Screw, Hex Head (1/4-20 x 3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 7930333 | Locknut (1/4-20) | 25 | 3 |
$44.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 0313800 | NLA - Hardware, Pivot | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1072819 | NLA - Arm Assembly, w/ Arm Pad and Pivot Hardware, Full Length, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1072820 | NLA - Arm Assembly, w/ Arm Pad and Pivot Hardware, Full Length, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1072817 | NLA - Arm Assembly, w/ Arm Pad and Pivot Hardware, Desk Length, Black - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1072818 | NLA - Arm Assembly, w/ Arm Pad and Pivot Hardware, Desk Length, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 0002600 | NLA - Pad, Arm, Full Length (14" L x 3" W) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 0002500 | NLA - Pad, Arm, Desk Length (10" L x 3" W) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 0028202 | Tube, Extension, Full Length | 1 | 1 |
$26.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1027095 | Plug Button, Black (7/8") | 1 | 1 |
$9.20 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 0066306 | NLA - Screw, Phillips Pan Head (#10-32 x 1-1/2") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 0028902 | NLA - Tube, Upper Support | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 0051206 | NLA - Screw, Machine, Hex Socket, Button Head (1/4-20 x 1-1/4) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 7930323 | NLA - Package, Locknut (1/4-20) | 25 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 0051406 | NLA - Screw, Machine, Hex Socket, Flat Head (1/4 x 1-3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 0028402 | NLA - Support, Armrest | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 0064100 | NLA - Block, Glide | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 0028302 | NLA - Tube, Lower Support | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 0050506 | NLA - Lockwasher, High Collar, Split (1/4") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 0051606 | NLA - Screw, Cap, Button Head, Socket (1/4-20 x 1") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 0050100 | NLA - Washer, Nylon Flat (1/4 x 1/2 x 1/16") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 0028802 | NLA - Tube, Armrest - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 0028702 | NLA - Tube, Armrest, Black - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
24 | 0065706 | Screw, Phillips Pan Head Tap (#10-16 x 3/4") | 1 | 1 | A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Item number 24 is used with full length armpads only. Desk length armpads use item number 12 in this position. |
