Backs - Recessed - Sliding, VSR

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1-2

See Chart

Added to Cart

Material Back Width x Height	Overall Back Height	Item #1 Back Pan	Item #2 Back Assembly w/ Sliding Hardware
14" x 15"	23"	0048019	0323800- NLA
15" x 15"	23"	0048119- NLA	0323900- NLA
16" x 15"	23"	0048219	0324000- NLA
17" x 15"	23"	0048319	0324100- NLA
18" x 15"	23"	0048419	0324200- NLA
19" x 15"	23"	0048519	0324300- NLA
20" x 15"	23"	0048619	0324400- NLA
21" x 15"	23"	Special	Special
22" x 15"	23"	Special	Special
23" x 15"	23"	Special	Special
24" x 15"	23"	Special	Special

Create/add to Wishlist

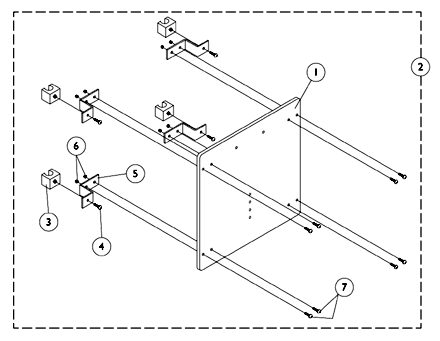

#'s 1-2 Recessed Back Assembly (Sliding, VSR)

N/A

Create/add to Wishlist

0047800

NLA - Block, Glide

N/A

Create/add to Wishlist

0223506

NLA - Screw, Socket, Cap, Button Head (1/4-20 x 1/2")

N/A

Create/add to Wishlist

0047902

Hook, Mounting

Create/add to Wishlist

7930323

NLA - Package, Locknut (1/4-20)

N/A

Create/add to Wishlist

0052906

NLA - Screw, Socket Button Head (1/4-20 x 3/4")

N/A

Create/add to Wishlist

0143900

NLA - Flap, Back Pan - Tarsys

N/A

A ,B

Create/add to Wishlist

0144000

NLA - Flap, Back Pan - Tarsys

N/A

A ,C

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Not Shown
B	16"-19" Wide
C	20"-24" Wide

Catalog Literature

Parts Books for Tarsys® Basic Tilt, Tilt Only, Recline 4XP, Recline Only, Tilt/Recline
