Front Riggings - Myon/Myon Active Footrest Support, Calf Pad, and Amputee Legrest

Print this page

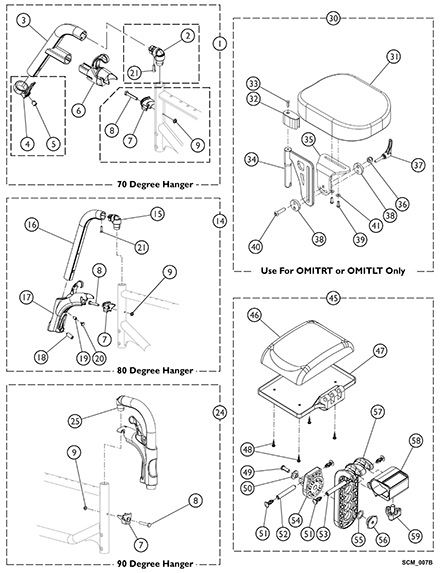

Front Riggings - Myon, Myon Active Hangers, Calf Pad, and Amputee

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

8881173077

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
8	Screw, Socket Head, Cap (M6 x 35mm)	1	1
9	Screw, Countersunk (M4.8)	1	1
6	Calf Support Strap	1	1
2	Tube, Rigging, 70 Degree, Color	1	1
3	Housing, Locking Pin	1	1
4	Support, Hanger, Footrest	1	1
2	Support, Hanger, Footrest	1	1
3	Tube, Rigging, 70 Degree, Color	1	1
4	Calf Support Strap	1	1
5	Screw, Socket Head Cone PT Set (M10 x 1.5 x 16)	1	1
6	Housing, Locking Pin	1	1
7	Bracket, Front Rigging	1	1
8	Screw, Socket Head, Cap (M6 x 35mm)	1	1
9	NLA - Locknut (M6 x 1)	1	1
21	Screw, Countersunk (M4.8)	1	1
5	Bracket, Front Rigging	1	1
10	NLA - Locknut (M6 x 1)	1	1
7	Screw, Socket Head Cone PT Set (M10 x 1.5 x 16)	1	1

Hanger, Front Rigging, 70 Degree, Color

$88.00

Create/add to Wishlist

1190014

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Calf Support Strap	1	1
5	Screw, Stop (M10 x 1.5 x 12mm)	1	1

Kit, Strap Support w/ Hardware

$21.25

Create/add to Wishlist

1190015

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Support, Hanger, Footrest	1	1
21	Screw, Countersunk (M4.8)	1	1

Kit, Hanger Support w/ Hardware

Create/add to Wishlist

1190016

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Bracket, Front Rigging	1	1
8	Screw, Socket Head, Cap (M6 x 35mm)	1	1
9	NLA - Locknut (M6 x 1)	1	1

Kit, Rigging Bracket w/ Hardware

$11.00

Create/add to Wishlist

8881169050

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Stop (M10 x 1.5 x 12mm)	1	1
13	Housing, Legrest, 80 Degree	1	1
16	Key, Cap	1	1
4	Support, Hanger, Footrest	1	1
5	Bracket, Front Rigging	1	1
8	Screw, Socket Head, Cap (M6 x 35mm)	1	1
10	NLA - Locknut (M6 x 1)	1	1
14	Screw, Stop (M10 x 1.5 x 23mm)	1	1
7	Bracket, Front Rigging	1	1
8	Screw, Socket Head, Cap (M6 x 35mm)	1	1
9	NLA - Locknut (M6 x 1)	1	1
15	Support, Hanger, Footrest	1	1
16	Tube, Upper, Front Rigging, Color	1	1
17	Housing, Legrest, 80 Degree	1	1
18	Screw, Stop (M10 x 1.5 x 23mm)	1	1
19	Screw, Stop (M10 x 1.5 x 12mm)	1	1
20	Key, Cap	1	1
21	Screw, Countersunk (M4.8)	1	1
9	Screw, Countersunk (M4.8)	1	1
12	Tube, Upper, Front Rigging, Color	1	1

Hanger, Front Rigging, 80 Degree, Color

$88.00

Create/add to Wishlist

1169049

Tube, Upper, Front Rigging, Color

Create/add to Wishlist

1493056-0509

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Bracket, Front Rigging	1	1
8	Screw, Socket Head, Cap (M6 x 35mm)	1	1
9	NLA - Locknut (M6 x 1)	1	1

Hanger, Front Rigging, 90 Degree, Color

Create/add to Wishlist

1169054

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
31	Pad, Amputee, Legrest	1	1
32	Screw, Flat Head, Socket (M5 x .8 x 16mm)	1	1
33	Stopper, Amputee	1	1
34	Support, Legrest, Amputee	1	2
35	Screw, Button Head (M8 x 30mm)	1	1
36	Spacer, Locking, Amputee	1	2
37	Screw, Button Head (M5 x 16mm)	1	2
38	Runner, Amputee	1	1
39	Washer, Flat (12 x 5 x 1)	1	2
40	Nut (M8)	1	1
41	Lever, Indexable (M6 x 1 x 25mm)	1	1

Amputee Legrest Assembly w/ Hardware - Right

$563.00

D ,F

Create/add to Wishlist

1169055

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
31	Pad, Amputee, Legrest	1	1
32	Screw, Flat Head, Socket (M5 x .8 x 16mm)	1	1
33	Stopper, Amputee	1	1
34	Support, Legrest, Amputee	1	1
35	Screw, Button Head (M8 x 30mm)	1	1
36	Spacer, Locking, Amputee	1	2
37	Screw, Button Head (M5 x 16mm)	1	2
38	Runner, Amputee	1	1
39	Washer, Flat (12 x 5 x 1)	1	2
40	Nut (M8)	1	1
41	Lever, Indexable (M6 x 1 x 25mm)	1	1

Amputee Legrest Assembly w/ Hardware - Left

$563.00

Create/add to Wishlist

1169052

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Pin, Spring (M8 x 50mm)	1	1
12	Spacer, Sleeve	1	1
4	Plate, Articulation, Female	1	1
5	Plate, Adjustment Angle	1	1
7	Knob, Locking, Star	1	1
8	Pin, Spring (M8 x 55mm)	1	1
11	Screw, Socket, Button Head (M6 x 16mm)	1	1
3	Plate, Attaching, Calf Pad (15 - 17" W)	1	1
56	Ring, Locking	1	1
57	Plate, Articulation, Female	1	1
58	Plate, Articulation	1	1
59	Knob, Locking, Star	1	1
6	Plate, Articulation	1	1
46	Pad, Calf (15 - 17" W)	1	1
47	Plate, Attaching, Calf Pad (15 - 17" W)	1	1
48	Screw, VBA (M3.5 x 15)	1	4
49	Screw, Socket, Button Head (M6 x 16mm)	1	1
50	Spacer, Sleeve	1	1
51	Clamp, Calf Pad Plate	1	1
52	Pin, Spring (M8 x 50mm)	1	1
53	Pin, Spring (M8 x 55mm)	1	1
54	Plate, Adjustment Angle	1	1
55	Washer (2.4mm x 15.6mm)	1	1
2	Pad, Calf (15 - 17" W)	1	1
10	Clamp, Calf Pad Plate	1	4
15	Screw, VBA (M3.5 x 15)	1	4
13	Washer (2.4mm x 15.6mm)	1	1
14	Ring, Locking	1	1

Calf Pad Assembly w/ Hardware (15 - 17" W)

$125.00

Create/add to Wishlist

1169053

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Plate, Articulation	1	1
12	Spacer, Sleeve	1	1
13	Washer (2.4mm x 15.6mm)	1	1
14	Ring, Locking	1	1
15	Screw, VBA (M3.5 x 15)	1	4
3	Plate, Attaching, Calf Pad (18 - 20" W)	1	1
7	Knob, Locking, Star	1	1
11	Screw, Socket, Button Head (M6 x 16mm)	1	1
46	Pad, Calf (18 - 20" W)	1	1
47	Plate, Attaching, Calf Pad (18 - 20" W)	1	1
48	Plate, Articulation, Female	1	1
49	Washer (2.4mm x 15.6mm)	1	1
50	Spacer, Sleeve	1	1
51	Clamp, Calf Pad Plate	1	4
52	Ring, Locking	1	1
53	Screw, VBA (M3.5 x 15)	1	4
54	Screw, Socket, Button Head (M6 x 16mm)	1	1
55	Pin, Spring (M8 x 55mm)	1	1
56	Pin, Spring (M8 x 50mm)	1	1
57	Plate, Adjustment Angle	1	1
58	Plate, Articulation	1	1
59	Knob, Locking, Star	1	1
4	Plate, Articulation, Female	1	1
5	Plate, Adjustment Angle	1	1
8	Pin, Spring (M8 x 50mm)	1	1
2	Pad, Calf (18 - 20" W)	1	1
9	Pin, Spring (M8 x 55mm)	1	1
10	Clamp, Calf Pad Plate	1	4

Calf Pad Assembly w/ Hardware (18 - 20" W)

$125.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 9, and item 21.
B	Includes items 7, 8, 9, and items 15 - 21.
C	Includes items 7, 8, and 9.
D	Includes items 31 - 41. Only used when an Amputee (AMPLEGLT, AMPLEGRT) is ordered.
E	Includes items 46 - 59.
F	Quantity is one if OMITRT or OMITLT is required for chair.
G	Kit includes items 4 and 5.
H	Kit includes items 2 and 21.
I	Kit includes items 7, 8, and 9.

Catalog Literature

Parts Books for MyOn® - Canada MyOn® - Active - Canada MyOn® - Junior - Canada
