Front Riggings - Footplates & Heel Loops w/ Extension - FR75 Legrest Support Assemblies

Print this page

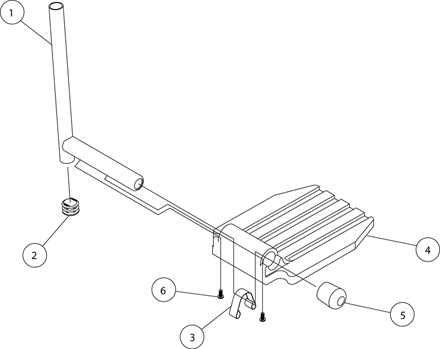

Footplates / Heel Loops with Extension - FR75 Legrest Support Assemblies

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1-6	7516R	Footplate w/Pivot Slide Tube - RH (16")	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1-6	7516L	Footplate w/Pivot Slide Tube - LH (16")	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1-6	7518R	Footplate w/Pivot Slide Tube - RH (18")	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1-6	7518L	Footplate w/Pivot Slide Tube - LH (18")	0	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1041527	Pivot/Slide Tube w/ Plug Button, Black	1	2	$31.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1027097	Plug Button, Black (3/4")	1	2	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1006981	Spring, Tension	1	2	$10.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1036123	Spring, Leaf	1	2	$12.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X059	Footplate, Aluminum, Small, Black (6-3/4" W x 6" L)	1	2	$51.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X027	Footplate, Aluminum, Medium, Black (7-3/4" W x 6" L)	1	2	$51.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X025	Footplate, Aluminum, Extra Large, Black - Right (8" W x 8-1/2" L)	1	2	$77.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	44200X026	Footplate, Aluminum, Extra Large, Black - Left (8" W x 8-1/2" L)	1	2	$77.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1016346	Cap, End, Tube, Black (7/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	40120X001	Screw, Phillips Pan Head (#8-32 x 3/8")	2	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Small & Medium
B	Extra Large
C	Use one or more leaf springs per assembly as required such that footplate may be moved by hand to the up-right position and remain in place.

Catalog Literature

Parts Books for Concept 45 Tilt-N-Space
