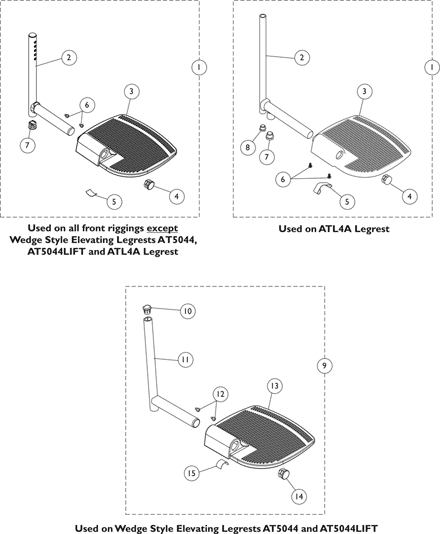

Front Riggings - Pivot/Slide Tube & A1564 Extra Large Aluminum Footplates
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
See Chart
Added to Cart
Create/add to WishlistCreate/add to Wishlist |
#1 Pivot/Slide Tube w/ Extra Large Aluminum Footplate | N/A | N/A | N/A | |||||||||||||||||||||||||||||||||||||||||||||||||||
|
See Chart
Added to Cart
Create/add to WishlistCreate/add to Wishlist |
#9 Pivot/Slide Tube w/ Extra Large Aluminum Footplate Assembly | N/A | N/A | N/A |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 2-7 for all footrests except ATL4A. |
| B | Used on 60, 70, and 80 degree footrest 14-15" wide chairs, also used on 70 degree tapered footrest for 18-19" wide chairs. |
| C | Used on 60, 70, and 80 degree footrest 16-24" wide chairs, also used on 70 degree tapered footrest for 20-24" wide chairs. |
| D | Used on ATL4A Articulated Legrest |
| E | Includes items 10-15 |
| F | Used on wedge style AT5044 and AT5044LIFT Legrest 14" - 15" wide chairs |
| G | Used on wedge style AT5044 and AT5044LIFT Legrest 16" - 24" wide chairs |
| H | Uses items 2-8 for ATL4A Legrest. |
| I | Use with Extra Large Footplates. |
| J | Use one or more leaf springs per assembly as required such that footplate may be moved by hand to the up-right position and remain in place. |
