1

1023966

Screw, Socket Head (#10-32 x 1-3/4")

1

Create/add to Wishlist

2

0060000

NLA - Bumper, Rubber

1

N/A

Create/add to Wishlist

3

0140406

NLA - Screw, Socket Head, Cap (5/16-18 x 1-1/2")

1

N/A

Create/add to Wishlist

4

0061400

NLA - Decal, Warning Label Tie Down

1

N/A

Create/add to Wishlist

5

0289824

NLA - Legrest Hanger Receptical w/ Dowel Pin Assembly, Black

1

N/A

Create/add to Wishlist

6

1096649

NLA - Guide, Square w/ Brass Barb Insert

1

N/A

Create/add to Wishlist

7

0176700

NLA - Bushing, Coved Latch Legrest Genius

1

N/A

Create/add to Wishlist

8

0050100

NLA - Washer, Nylon Flat (1/4 x 1/2 x 1/16")

1

10

N/A

Create/add to Wishlist

9

0051606

NLA - Screw, Cap, Button Head, Socket (1/4-20 x 1")

1

2

N/A

Create/add to Wishlist

10

0052906

NLA - Screw, Socket Button Head (1/4-20 x 3/4")

1

3

N/A

Create/add to Wishlist

11

0177802

NLA - Link, Black - Rear

1

N/A

Create/add to Wishlist

12

1086987

NLA - Plate, Push Pin

1

N/A

Create/add to Wishlist

13

0179202

NLA - Plate, Link

1

N/A

Create/add to Wishlist

14

7930323

NLA - Package, Locknut (1/4-20)

25

1

N/A

Create/add to Wishlist

15

7930333

Locknut (1/4-20)

25

1

$44.00

Create/add to Wishlist

16

0223506

NLA - Screw, Socket, Cap, Button Head (1/4-20 x 1/2")

1

N/A

Create/add to Wishlist

17

0180506

NLA - Screw, Slotted, Pan Head (5/16-18 x 1-15/16")

1

N/A

Create/add to Wishlist

18

0054700

NLA - Washer, Nylon (5/16 x 1/2 x 1/16")

1

2

N/A

Create/add to Wishlist

19

0177702

NLA - Link, Black - Front

1

N/A

Create/add to Wishlist

20

0182406

NLA - Pin, Push

1

N/A

Create/add to Wishlist

21

1028486

Locknut, Low Profile (3/8-16)

1

$10.00

Create/add to Wishlist

22

0175600

Spacer, Coved (5/16 x 3/4 x 3/8")

1

2

Create/add to Wishlist

23

0055206

NLA - Screw, Cap, Button Head, Socket (5/16-18 x 1-3/4")

1

N/A

Create/add to Wishlist

24

1072692

NLA - Lockwasher, Split (5/16")

1

N/A

Create/add to Wishlist

25

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

1

$7.20

Create/add to Wishlist

26

0176422

NLA - Spacer, Coved (5/16 x 3/4 x 3/8")

1

2

N/A

Create/add to Wishlist

27

0055006

NLA - Locknut, Low Profile (5/16-18)

1

2

N/A

Create/add to Wishlist

28

0176200

NLA - Bushing, Nylon Guide

1

2

N/A

Create/add to Wishlist

29

0177100

NLA - Bushing, Legrest Support

1

N/A

Create/add to Wishlist

30

0178224

NLA - Bar, Insert, Black

1

N/A

Create/add to Wishlist

31

0175800

NLA - Bushing, Guide

1

N/A

Create/add to Wishlist

32

0224600

NLA - Screw, Socket Head, Cap (#10-32 x 3/4")

1

N/A

Create/add to Wishlist

39

1109613

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	NLA - Locknut, Low Profile (5/16-18)	1	1
33	NLA - Screw, Hex Head (5/16-18 x 3-1/2)	1	1
34	NLA - Clamp, Calf Pad	1	1
35	NLA - Block, Legrest Pad Mount	1	1
36	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
36	Screw, Phillips Pan Head (#10-32 x 1")	1	2
37	Plate, Legrest Pad	1	1
38	NLA - Block, Mounting	1	1
	Instruction Sheet, Legrest Pad Mtg.	1	1
27	NLA - Locknut, Low Profile (5/16-18)	1	1
33	NLA - Screw, Hex Head (5/16-18 x 3-1/2)	1	1
34	NLA - Clamp, Calf Pad	1	1
35	NLA - Block, Legrest Pad Mount	1	1
36	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
37	Plate, Legrest Pad	1	1
38	NLA - Block, Mounting	1	1
36	Screw, Phillips Pan Head (#10-32 x 1")	1	2
	Instruction Sheet, Legrest Pad Mtg.	1	1
27	NLA - Locknut, Low Profile (5/16-18)	1	1
33	NLA - Screw, Hex Head (5/16-18 x 3-1/2)	1	1
34	NLA - Clamp, Calf Pad	1	1
35	NLA - Block, Legrest Pad Mount	1	1
36	Screw, Phillips Pan Head (#10-32 x 11/16")	1	2
36	Screw, Phillips Pan Head (#10-32 x 1")	1	2
37	Plate, Legrest Pad	1	1
38	NLA - Block, Mounting	1	1
	Instruction Sheet, Legrest Pad Mtg.	1	1

NLA - Kit, Calf Pad Mounting, Retro-Fit

1

B

Create/add to Wishlist

40

8881193555

Calf Pad Assembly, Black Base (Pair)

2

1

$74.00

A ,F

Create/add to Wishlist

41

0238124

NLA - Tube, Legrest (18")

1

N/A

Create/add to Wishlist

41

0232424

NLA - Tube, Legrest (20")

1

N/A

Create/add to Wishlist

42

0177022

NLA - Clamp, Tube Half

1

2

N/A

Create/add to Wishlist

43

0177602

NLA - Plate, Adjustment

1

2

N/A

Create/add to Wishlist

44

1024793

NLA - Screw, Hex Head (1/4-20 x 1-3/4")

1

3

N/A

Create/add to Wishlist

45

1096664

NLA - Plug Button, Black (1")

1

N/A

Create/add to Wishlist

46

0177222

NLA - Pivot, Footplate

1

N/A

Create/add to Wishlist

47

1027097

Plug Button, Black (3/4")

1

$7.50

Create/add to Wishlist

48

0194906

NLA - Screw, Phillips Pan Head Tap (#8-32 x 1/2")

1

N/A

Create/add to Wishlist

49

0176022

NLA - Spacer

1

2

N/A

C

Create/add to Wishlist

49

0186000

NLA - Spacer, Wheel

1

2

N/A

D

Create/add to Wishlist

50

0179824

NLA - Tube, Footplate, Black

1

N/A

C

Create/add to Wishlist

50

0288824

NLA - Tube, Footplate, Black

1

N/A

D

Create/add to Wishlist

51

1036120

NLA - Spring

1

2

N/A

C

Create/add to Wishlist

51

1036123

Spring, Leaf

1

2

$12.00

D ,G

Create/add to Wishlist

52

1043659

NLA - Footplate, Aluminum, Deluxe, Black - Right (8" W x 5-3/4" L)

1

N/A

C

Create/add to Wishlist

52

1043660

NLA - Footplate, Aluminum, Deluxe, Black - Left (8" W x 5-3/4" L)

1

N/A

C

Create/add to Wishlist

52

44200X025

Footplate, Aluminum, Extra Large, Black - Right (8" W x 8-1/2" L)

1

$77.00

Create/add to Wishlist

52

44200X026

Footplate, Aluminum, Extra Large, Black - Left (8" W x 8-1/2" L)

1

$77.00

Create/add to Wishlist

See Chart

Added to Cart

Description	Standard Footplate	X-Large Footplate	Standard Footplate	X-Large Footplate
Legrest Tube	18" Long	18" Long	20" Long	20" Long
Width Range	16"-24"	16"-24"	16"-24"	16"-24"
Right Assembly	0196600- NLA	1072595- NLA	0264000- NLA	1072597- NLA
Left Assembly	0196500- NLA	1072594- NLA	0263900- NLA	1072596- NLA
Pair	0138100- NLA	1072904- NLA	0263800- NLA	1072905- NLA

Create/add to Wishlist

Genuis Legrest Assembly

N/A

Note Code	Definition
A	Item 39 and 40 must be ordered together in pairs for Genius Legrest manufactured before 11/20/01.
B	Includes Items 27 and 33 - 38 (Per Side).
C	Standard Footplate with Rubber Edge.
D	Used with Extra Large Footplate.
E	Not Shown.
F	Due to a change to the Legrest Calf Pad size made on 4/23/12, you must also order the hardware kit (1109613) when ordering replacement Calf Pads.
G	Use one or more leaf springs per assembly as required such that footplate may be moved by hand to the up-right position and remain in place.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

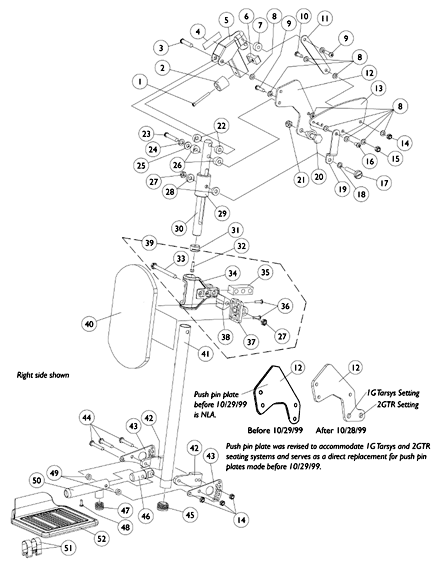

Front Riggings - Legrest, Genius (Mechanical)
