Backs - Conventional without Mounting Hardware

Print this page

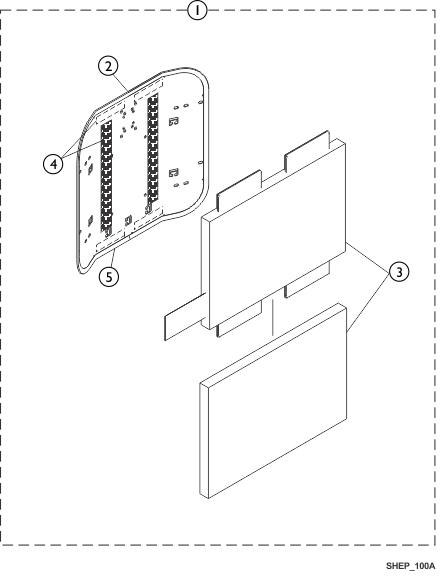

Back, Conventional without Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1125723

Kit, Hook Fastener w/ Adhesive Back

$19.00

Create/add to Wishlist

1125724

NLA - Trim, Edge, Cut-To-Length, Vinyl Black (96" L)

N/A

Create/add to Wishlist

See Chart

Added to Cart

Overall Back Height	Material Back Height	21" Wide	22" Wide	23" Wide	24" Wide
20"	15"	1125569	1125570	1125571	1125572
21"	16"	1125578	1125579	1125580	1125581
22"	17"	1125587	1125588	1125589- NLA	1125590- NLA
23"	18"	1125596	1125597	1125598- NLA	1125599- NLA
24"	19"	1125605	1125606	1125607- NLA	1125608- NLA
25"	20"	1125614	1125615	1125616- NLA	1125617- NLA
26"	21"	1125623	1125624	1125625- NLA	1125626- NLA

Create/add to Wishlist

#1 Back Assembly without Hardware 21"-24" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	21" Wide	22" Wide	23" Wide	24" Wide
20"	15"	1097402	1125543	1125544	1125545
21"	16"	1097409	1125546	1125547	1125548
22"	17"	1097416	1125549	1125550	1125551
23"	18"	1097423 MSRP: $194.00	1125552 MSRP: $194.00	1125553	1125554
24"	19"	1097430	1125555	1125556	1125557
25"	20"	1097437	1125558	1125559	1125560
26"	21"	1097444 MSRP: $775.00	1125561	1125562- NLA	1125563 MSRP: $194.00

Create/add to Wishlist

#3 Back Cushion Assembly 21"-24" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" Wide	17" Wide	18" Wide	19" Wide	20" Wide
20"	15"	1124578 MSRP: $91.00	1124585	1124592	1124599	1124606
21"	16"	1124579	1124586	1124593	1124600	1124607 MSRP: $95.00
22"	17"	1124580	1124587	1124594	1124601	1124608 MSRP: $91.00
23"	18"	1124581	1124588	1124595	1124602	1124609
24"	19"	1124582 MSRP: $86.00	1124589	1124596	1124603	1124610
25"	20"	1124583	1124590	1124597	1124604	1124611 MSRP: $95.00
26"	21"	1124584	1124591	1124598	1124605	1124612

Create/add to Wishlist

#2 Back Pan with Vinyl Edge Trim 16"-20" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" Wide	17" Wide	18" Wide	19" Wide	20" Wide
20"	15"	1125564	1125565 MSRP: $315.00	1125566 MSRP: $315.00	1125567	1125568
21"	16"	1125573	1125574	1125575 MSRP: $315.00	1125576	1125577 MSRP: $315.00
22"	17"	1125582	1125583	1125584 MSRP: $315.00	1125585	1125586 MSRP: $315.00
23"	18"	1125591 MSRP: $315.00	1125592	1125593 MSRP: $315.00	1125594 MSRP: $300.00	1125595
24"	19"	1125600	1125601 MSRP: $315.00	1125602 MSRP: $300.00	1125603	1125604
25"	20"	1125609	1125610	1125611 MSRP: $315.00	1125612 MSRP: $315.00	1125613
26"	21"	1125618 MSRP: $315.00	1125619 MSRP: $315.00	1125620	1125621 MSRP: $285.00	1125622

Create/add to Wishlist

#1 Back Assembly without Hardware 16"-20" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	21" Wide	22" Wide	23" Wide	24" Wide
20"	15"	1124613	1124620	1124627	1124634
21"	16"	1124614	1124621	1124628	1124635
22"	17"	1124615	1124622	1124629	1124636
23"	18"	1124616	1124623	1124630	1124637
24"	19"	1124617	1124624	1124631	1124638
25"	20"	1124618	1124625	1124632	1124639
26"	21"	1124619	1124626	1124633- NLA	1124640

Create/add to Wishlist

#2 Back Pan with Vinyl Edge Trim 21"-24" Wide

N/A

See Chart

Added to Cart

Overall Back Height	Material Back Height	16" Wide	17" Wide	18" Wide	19" Wide	20" Wide
20"	15"	1097397	1097398 MSRP: $194.00	1097399 MSRP: $194.00	1097400 MSRP: $194.00	1097401 MSRP: $194.00
21"	16"	1097404	1097405 MSRP: $194.00	1097406 MSRP: $194.00	1097407 MSRP: $194.00	1097408 MSRP: $175.00
22"	17"	1097411 MSRP: $194.00	1097412	1097413 MSRP: $194.00	1097414	1097415 MSRP: $194.00
23"	18"	1097418	1097419	1097420 MSRP: $194.00	1097421	1097422
24"	19"	1097425 MSRP: $194.00	1097426 MSRP: $194.00	1097427 MSRP: $194.00	1097428 MSRP: $194.00	1097429
25"	20"	1097432	1097433	1097434 MSRP: $194.00	1097435 MSRP: $194.00	1097436 MSRP: $194.00
26"	21"	1097439 MSRP: $194.00	1097440	1097441 MSRP: $184.00	1097442 MSRP: $175.00	1097443 MSRP: $194.00

Create/add to Wishlist

#3 Back Cushion Assembly 16"-20" Wide

N/A

Assembly Part Notes

Note Code	Definition
A	Hook Fastener Adhesive kit is used to attach the Back Cover to the Back Pan and must be ordered when a new Back Pan or Back Assembly is requested.

Catalog Literature

Parts Books for Formula™ TRE Powered Seating
