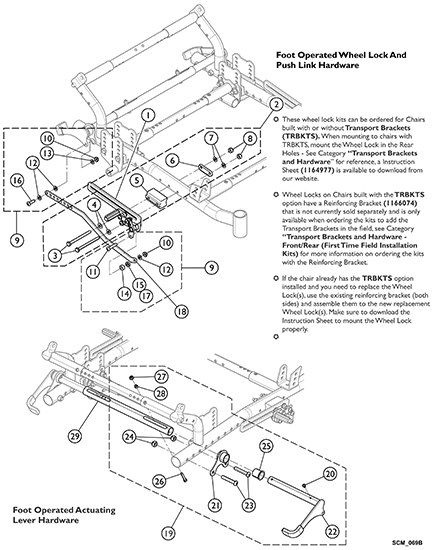

Wheel Locks & Attaching Hardware - Foot Operated

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1164108

Wheel Lock Assembly, Foot Operated - Right

$69.00

Create/add to Wishlist

1164109

Wheel Lock Assembly, Foot Operated - Left

$69.00

Create/add to Wishlist

1154012

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Screw, Hex Head Cap (1/4-28 x 3")	1	4
5	Washer (1/4 x 9/16 x 1/16")	1	4
6	Extrusion, Wheel Lock Mounting, Black	1	2
7	Spacer, Brake	1	2
8	Washer, Plain (1/4 x 1/2 x 9/16")	1	4
9	Locknut (1/4-28)	1	4
3	Screw, Hex Head Cap (1/4-28 x 3")	1	4
4	Washer (1/4 x 9/16 x 1/16")	1	4
5	Extrusion, Wheel Lock Mounting, Black	1	2
6	Spacer, Brake	1	2
7	Washer, Plain (1/4 x 1/2 x 9/16")	1	4
8	Locknut (1/4-28)	1	4

Kit, Wheel Lock Mounting Hardware (Pair)

$38.00

A ,D

Create/add to Wishlist

1164112

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
10	Locknut (1/4-28)	1	4
12	Washer, Nylon (1/4 x 1/2 x 1/16")	1	6
13	Washer, Nylon (1/4 x 1/2 x 1/32")	1	2
14	NLA - Spacer	1	2
15	NLA - Spacer (1/4 x 1/2 x 5/32")	1	2
16	NLA - Screw, Socket, Button Head (1/4-28 x 3/4")	1	2
17	Washer, Nylon (1/4 x 1/2 x 1/8")	1	1
11	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	2

Kit, Connecting Push Link Hardware (Pair)

$100.00

B ,D ,F

Create/add to Wishlist

1163903

Link, Connecting Push, Black (20", 22", 24" Wheel)

$16.00

Create/add to Wishlist

1163902

Link, Connecting Push, Black (16" & 18" Wheel)

$16.00

Create/add to Wishlist

1163901

Link, Connecting Push, Black (12" Wheel)

$15.00

Create/add to Wishlist

1164110

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
20	NLA - Screw, Phillips Pan Head (#8-32 x 1/4")	1	1
21	Plate, Pivot, Footlock, Black - Right	1	1
22	Lever, Actuating, Footlock, Black - Right	1	1
23	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	2
24	Locknut (5/16-24)	1	2
25	Bushing, Pivot	1	1
26	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
27	Spacer, Nylon (3/16 x 5/16 x 5/16")	1	1
28	Locknut (10-32)	1	1

Kit, Foot Operated Actuating Lever Hardware - Right

$58.00

Create/add to Wishlist

1164111

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
20	NLA - Screw, Phillips Pan Head (#8-32 x 1/4")	1	1
21	Plate, Pivot, Footlock, Black - Left	1	1
22	Lever, Actuating, Footlock, Black - Left	1	1
23	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	2
24	Locknut (5/16-24)	1	2
25	Bushing, Pivot	1	1
26	NLA - Screw, Socket Head (#10-32 x 1-1/4")	1	1
27	Spacer, Nylon (3/16 x 5/16 x 5/16")	1	1
28	Locknut (10-32)	1	1

Kit, Foot Operated Actuating Lever Hardware - Left

$58.00

Create/add to Wishlist

See Chart

Added to Cart

Seat Width Range		Part Number
12" - 16" Wide		1161769 MSRP: $12.00
14" - 18" Wide		1161770 MSRP: $12.00
16" - 20" Wide		1161771 MSRP: $13.00
18" - 22" Wide		1161772 MSRP: $13.00
20" - 24" Wide		1161773 MSRP: $13.00

Create/add to Wishlist

#15 Foot Tilt Crossbrace Tube

N/A

Assembly Part Notes

Note Code	Definition
A	Includes items 3 - 8.
B	Includes items 10 - 17.
C	Includes items 20 - 28.
D	Hardware quantity accommodates the right and left side
E	Fastens with Items 26, 27, and 28.
F	Use Item 17 with chairs built with 20", 22", and 24" wheels

Catalog Literature

Parts Books for Solara® 3G Spree 3G
