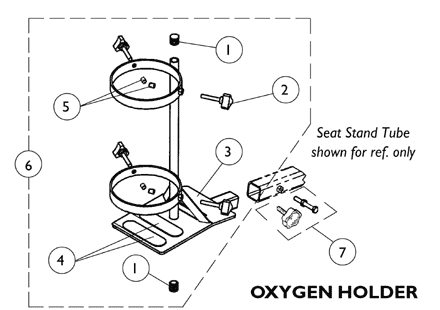

Accessories - Miscellaneous
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1035614 | Plug Button, Black (5/8") | 1 | 2 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1027684 | Knob, Clamping, Black | 1 | 4 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1080866 | Decal, Oxygen Warning - English | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
1090093 | NLA - Decal, Oxygen Warning - French Canadian | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
||
1092793 | NLA - Decal, Oxygen Warning - Domestic Spanish | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
||
4 | 1072004 | Pad, Non-Skid Adhesive Back | 1 | 2 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1086780 | NLA - Package, Protective Cap | 10 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
6 | 1091306 | NLA - Oxygen Holder Assembly - Deluxe Seats | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
7 | 1088765 | NLA - Fastener Hardware, Accessory Tube Includes: 1 ea. Tighten Knob 1 ea. Screw, Hex Cap (M10 x 25) 1 ea. Nut (M10 x 1.25 x 17) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
2000454 | NLA - Bag, Poly (39" L x 33" W) | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1091305 | NLA - Instruction Sheet, Oxygen Holder | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1083052 | NLA - Carton, Shipper, Oxygen Holder | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
P785 | NLA - Basket, Rear - Lynx SX3P/ SX3 and LX3 Plus with Deluxe Seat | 1 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
P725
|
Kit, Crutch/Cane Holder | 1 | 1 | C ,D |
Create/add to WishlistCreate/add to Wishlist |
||
P710 | Flag, Safety | 1 | 1 | D |
Create/add to WishlistCreate/add to Wishlist |
||
1035917 | NLA - Heel Loop (Pair) | 2 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
|
1017621 | Heel Loop - Right/Left | 1 | 1 |
$31.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
|
1035907 | Kit, Heel Loop Attaching Hardware (Pair) | 2 | 1 |
$27.00 |
D ,E |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Four protective caps are included with the oxygen holder assembly, replacement caps are sold in packages of 10. |
B | Includes items 1-3, 5 and 6. Fastener hardware part number 1088765 is not included with the oxygen holder assembly. |
C | THE PRODUCTION OF THE P725 IS CURRENTLY SUSPENDED. CONTACT CUSTOMER SERVICE FOR ORDERING OPTIONS. |
D | Not Shown |
E | Consists of: 2 ea. Screw, Phillips Head (1/4-20 x 2-1/4") 2 ea. Spacer (1/4 x 11/32 x 1-3/4") 2 ea. Locknut (1/4-20) |
