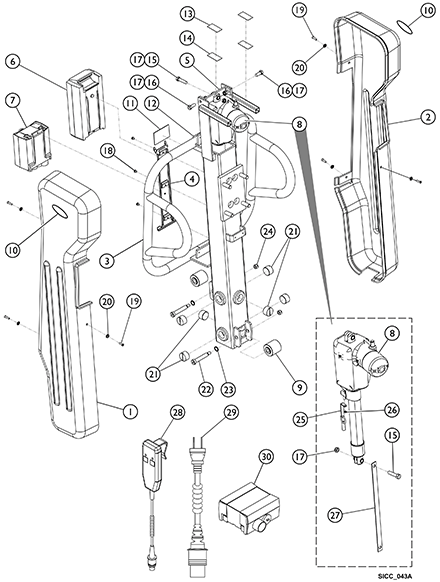

Model 1900 - Mast Assembly

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1147312	NLA - Shroud, Upper Left w/o Scale	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1147298	NLA - Shroud, Upper Right w/o Scale	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1147275	Bar, Lift Support, Mast	1	1	$448.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1078284	Bracket, Battery - Electric Only	1	1	$49.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1147293	NLA - Bracket, Bar, Cross	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1078276	Battery Pack, Linak	1	2	$246.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1078275	Controller - Electric Only	1	1	$271.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1147306	Actuator, Mast	1	1	$974.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1147296	Roller, Mast, Outer	1	2	$168.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1090147	NLA - Decal, Invacare Medallion - Large	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	PAR9990	NLA - Label, Serial and Model Number	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1111029	NLA - Decal, Capacity, Weight 350 lb. Canadian	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1033800	NLA - Hook, 2" Adhesive Back	0	0	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1026082	NLA - Fastener, Dual Lock	0	0	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1147365	NLA - Screw, Hex Head (3/8-16 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1147364	NLA - Screw, Hex Head (3/8-16 x 7/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	40363X000	Hex Nut (3/8"-16)	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1078980	Screw, Phillips Pan Head (#10-24 x 1/4")	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	IHPAR9911	Screw, Phillips, Flat Head (#10-24 x 3/4")	1	6	$2.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	60105597	Washer, #10 Countersunk Finishing	1	6			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1147292	Plug, Threaded - Plastic	1	6	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1147363	Screw, Shoulder, Socket (1/8 x 2-1/2")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1154071	NLA - Washer, Bellville, Separated (17/32 x 3/4 x 1/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1089061	NLA - Locknut (3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1154073	NLA - Bracket, L Shaped, Actuator	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1147369	NLA - Locknut, Hex (M4 x .7)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1147297	NLA - Strapping, Actuator	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1177604	Pendant, Two Channel w/ Hook	1	1	$68.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	1079133	Cord, Power, USA	1	1	$20.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	1078274	Charger, Electric Only w/o Power Cord	1	1	$286.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Pieces must be cut from roll into 2" by 2" Squares (2 each).
B	Power Cord not included with Charger.

Catalog Literature

Parts Books for ICC - Lift IH1200, IH1300, IH1500, IH1600, IH1800, IH1900, 1100 Scale
