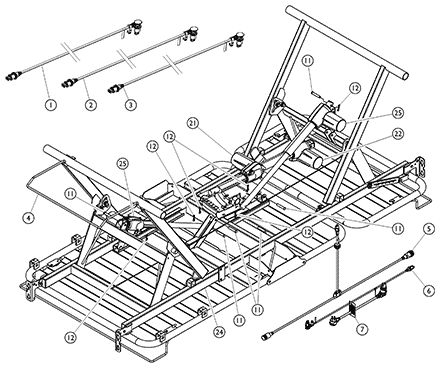

09. Wire Assembly

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1116640	Cable, Hi-Lo Motor w/ Red O-Ring (Head End)	1	1	$34.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1158431	Cable, HiLo Motor w/ Red O-Ring (Head End)	1	1	$41.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1116641	Cable, Head Actuator w/ Blue O-Ring	1	1	$34.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1158424	Cable, Motor, Foot (Blue)	1	1	$41.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1116642	Cable, Foot Actuator w/ Yellow O-Ring	1	1	$34.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1158425	Cable, Motor, Head (Yellow)	1	1	$40.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1152550	Wall Bumper Standard	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1158433	Cable, T, w/o Footboard Staff Control (Standard)	1	1	$38.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1147601	Cable, Hi/Lo Motor w/ Black O-Ring (Foot End)	1	1	$9.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1158431	Cable, HiLo Motor w/ Red O-Ring (Head End)	1	1	$41.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1165079	Power Cord	1	1	$44.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1186864	Clevis Pin (3/8 x 2" L)	1	6	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	PINBOW38	NLA - Cotter Pin, Bowtie (3/8")	1	6	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1159613	Actuator, Head (LA27-U041-01)	1	1	$168.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1147532	Actuator, Foot (LA27-U042-01)	1	1	$129.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1149706	NLA - Frame, Bed	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1165048	Kit, Actuator, HiLo w/ Tie Wrap (CS9FX600 Analog)	1	1	$233.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1158427	Actuator, HiLo (LA27-U086-00)	1	1	$263.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1186883	NLA - Wrap, Tie (8")	1	12	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Use (2) T-Cables required if using Footboard Staff Control.
B	Used on beds manufactured before 8/17/2010.
C	Used on beds manufactured after 8/17/2010.
D	Not shown in illustration.

Catalog Literature

Parts Books for ICC - Bed CS9
