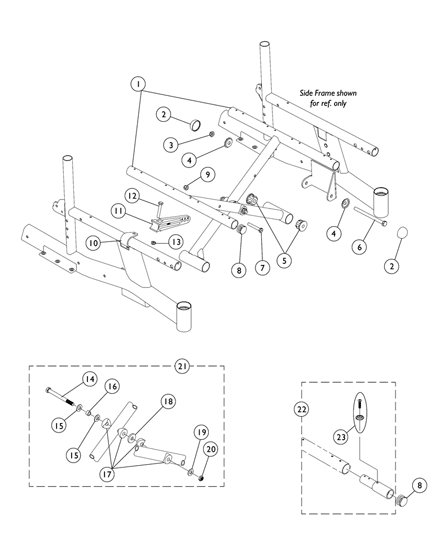

Frames - Crossbraces & Seat Extensions
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Not Shown in illustration. Includes items 2 - 6. |
| B | Includes items 14 - 20. |
| C | Used After 2/2/16. Includes the Extension Tubes, 2 ea. quantity of part #1054687 Screws and 1025707 Washers. |
| D | After 2/2/16 Crossbrace and Seat Upholstery Holes were revised to a larger size. One hole was added per side and attaching hardware Screw changed from (#10 x 7/8" Screw w/ Washer) to (#12 x 7/8" Screw). |
| D1 | Wheelchairs manufactured Before 2/3/16 will require new Crossbraces, Seat Upholstery and (Hardware After 2/2/16) to be ordered. |
| E | Used Before 2/3/16. 2" Extension Tube Kit with a #10 x 7/8" Screw hole is No Longer Available. |
| F | Used After 2/2/16. Hardware not sold separately. |
