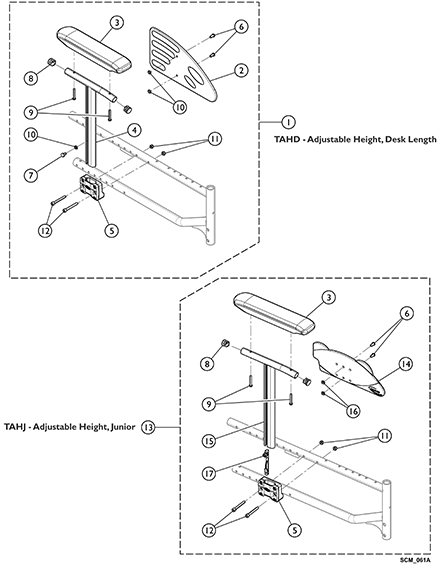

Arms - T Style Adjustable - Myon Series (TAHD, TAHJ)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1489055

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Socket Button Head (M6 x 1 x 12mm)	1	2
11	NLA - Locknut (M6 x 1)	1	2
12	Screw (M6 x 1 x 10mm)	1	1
5	Guard, Clothing - Right/Left	1	1
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
6	Plug Button, Black (3/4")	1	2
2	Arm Pad, Desk Length	1	1
4	NLA - Support, Armrest	1	1
2	Arm Pad, Desk Length	1	1
3	Support, T Arm, Junior	1	1
4	NLA - Support, Armrest	1	1
5	Guard, Clothing - Right/Left	1	1
6	Plug Button, Black (3/4")	1	2
7	Screw, Socket Button Head (M6 x 1 x 12mm)	1	2
8	Nut (M6)	1	2
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
10	Screw, Socket Head (M6 x 50)	1	2
11	NLA - Locknut (M6 x 1)	1	2
12	Screw (M6 x 1 x 10mm)	1	1
3	Support, T Arm, Junior	1	1
8	Nut (M6)	1	2
10	Screw, Socket Head (M6 x 50)	1	2

T-Arm Assembly, Desk Length, Junior - Right

C ,A

Create/add to Wishlist

1489056

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Screw, Socket Head (M6 x 50)	1	2
10	Screw, Socket Head (M6 x 50)	1	2
11	NLA - Locknut (M6 x 1)	1	2
12	Screw (M6 x 1 x 10mm)	1	3
8	Nut (M6)	1	3
6	Plug Button, Black (3/4")	1	2
4	NLA - Support, Armrest	1	1
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
2	Arm Pad, Desk Length	1	1
3	Support, T Arm, Junior	1	1
2	Arm Pad, Desk Length	1	1
3	Support, T Arm, Junior	1	1
4	NLA - Support, Armrest	1	1
5	Guard, Clothing - Right/Left	1	1
6	Plug Button, Black (3/4")	1	2
7	Screw, Socket Head (M6 x 50)	1	2
8	Nut (M6)	1	3
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
10	Screw, Socket Head (M6 x 50)	1	2
11	NLA - Locknut (M6 x 1)	1	2
12	Screw (M6 x 1 x 10mm)	1	3
5	Guard, Clothing - Right/Left	1	1

T-Arm Assembly, Desk Length, Junior - Left

C ,A

Create/add to Wishlist

1512645

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Arm Pad, Desk Length	1	1
5	NLA - Support, Armrest	1	1
6	Screw, Socket Button Head (M6 x 1 x 12mm)	1	2
8	Plug Button, Black (3/4")	1	2
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
11	NLA - Locknut (M6 x 1)	1	2
12	Screw, Socket Head (M6 x 50)	1	2
14	Guard, Clothing, Junior	1	1
15	Support, Armrest, Junior - Right	1	1
16	Nut (M6)	1	2
17	Locking Pin Assembly	1	1

T-Arm Assembly w/ Hardware, Junior, Bear - Right

D ,B

Create/add to Wishlist

1512646

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Arm Pad, Desk Length	1	1
5	NLA - Support, Armrest	1	1
6	Screw, Socket Button Head (M6 x 1 x 12mm)	1	2
8	Plug Button, Black (3/4")	1	2
9	Screw, Socket, Button Head (M5 x 35mm)	1	2
11	NLA - Locknut (M6 x 1)	1	2
12	Screw, Socket Head (M6 x 50)	1	2
14	Guard, Clothing, Junior	1	1
15	Support, Armrest, Junior, Left	1	1
16	Nut (M6)	1	2
17	Locking Pin Assembly	1	1

T-Arm Assembly w/ Hardware, Junior, Bear - Left

D ,B

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 12.
B	Includes items 3, 5, 6, 8, 9, 11, 12, 14, 15, 16, and item 17.
C	Used with Myon and Myon Active Desk Length Chairs (TAHD).
D	Used with Myon Junior Desk Length Chairs (TAHJ).

Catalog Literature

Parts Books for MyOn® - Canada MyOn® - Active - Canada MyOn® - Junior - Canada
