Seat Pans - Mounting Hardware - Drop/Flush - Heavy Duty (18 - 22" D)

Print this page

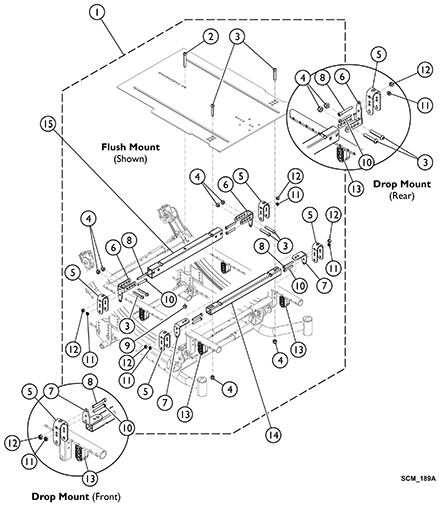

Drop and Flush Seat Pan Hardware - HD (18-22

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1190141

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Screw, Button Head, Socket (5/16-18 x 2-1/4")	1	1
3	Screw, Socket Button Head (5/16-24 x 1-3/4")	1	6
4	Locknut (5/16-24)	1	6
5	Bracket, Seat Pan	1	4
6	Bracket, Seat Pan, Adjustable	1	2
7	NLA - Bracket, Seat Pan, Front (Long)	1	2
8	Screw, Socket Head (1/4-20 x 1-3/4")	1	4
9	Locknut (5/16-18)	1	1
10	Screw, Socket Button Head (1/4-20 x 1-5/8")	1	4
11	Locknut, Thin (1/4-20)	1	4
12	Locknut (1/4-20)	1	4
13	Spacer, Block, Black	1	4

Kit, Hardware, Seat Pan, Heavy Duty (18-22" D)

$96.00

Create/add to Wishlist

See Chart

Added to Cart

Option	Chair Width	Part Number
SDR1822	14-15" W	1190117
SDR1822	16-17" W	1190118
SDR1822	18-19" W	1190119 MSRP: $21.00
SDR1822	20-21" W	1190120 MSRP: $21.00
SDR1822	22-23" W	1190121
SDR1822	24" W	1190122

Create/add to Wishlist

#14. Seat Pan Front Crossbraces

N/A

Create/add to Wishlist

See Chart

Added to Cart

Option	Chair Width	Part Number
Flush Mount/Drop Mount	12-13" W	1165779 MSRP: $15.00
Flush Mount/Drop Mount	14-15" W	1165780 MSRP: $16.00
Flush Mount/Drop Mount	16-17" W	1165781 MSRP: $17.00
Flush Mount/Drop Mount	18-19" W	1165782 MSRP: $17.00
Flush Mount/Drop Mount	20-21" W	1165783 MSRP: $17.00
Flush Mount/Drop Mount	22-23" W	1165784 MSRP: $18.00
Flush Mount/Drop Mount	24" W	1165785 MSRP: $19.00

Create/add to Wishlist

#15. Seat Pan Rear Crossbrace

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2 - 13.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
