Canes - Back - Attaching Hardware - Fixed Back (FXBACK)

Print this page

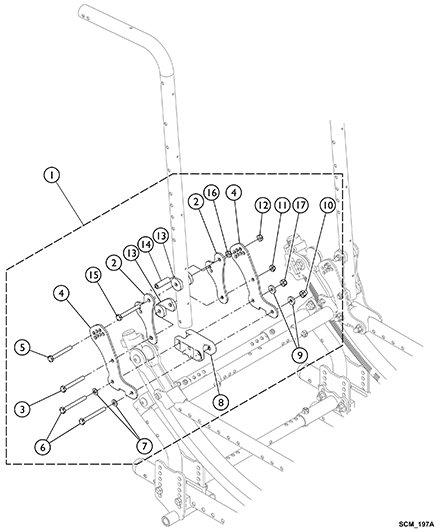

Back Cane Attaching Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1164103

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Plate, Fixed Back, Black	1	2
3	Screw, Hex Head (1/4-28 x 2")	1	1
4	Bracket, Backrest, Black	1	2
5	Screw, Hex Head (1/4-28 x 2")	1	1
6	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
7	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
8	Uni-Washer, Dual	1	1
9	Washer, Steel (1/4 x 5/8 x 3/32")	1	2
10	Nut, Hex Nylon (1/4-28)	1	1
11	Locknut (1/4-28)	1	1
12	Locknut, Thin (1/4-28)	1	1
13	Uni-Washer, Coved	1	2
14	NLA - Bushing, Nylon (1/4 x 3/8 x 1-1/4")	1	1
15	Screw, Socket Button Head (1/4-20 x 1-3/4")	1	1
16	Locknut, Thin (1/4-20)	1	1
17	Nut, Hex Nylon (1/4-28)	1	1

Kit, Back Cane Attaching Hardware, Fixed

1

1

$47.00

A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 17. Hardware quantity accommodates one side only.

Catalog Literature

Parts Books for Solara® 3G Spree 3G
