Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Plate, Outer - Right	1	1
2	Plate, Outer - Left	1	1
3	Plate, Inner - Right	1	1
3	Plate, Inner - Left	1	1
4	Link, Upper, Reclining Back - Right	1	1
4	Link, Upper, Reclining Back - Left	1	1
5	Link, Lower, Reclining Back - Right	1	1
5	Link, Lower, Reclining Back - Left	1	1
43	NLA - Cane, Back, Recliner w/ Upholstery, Black - Left	1	1
44	Upholstery, Back, Recliner, U240 (14" W x 24" H)	1	1
45	Package, Back Upholstery Screws w/ Washers (#10 x 7/8")	1	1
46	Package, Plug Button, Black (1")	1	1
	Instruction Sheet, Recliner Installation	1	1
6	Universal Washer	1	1
7	Plate, Spacer	1	2
8	Arm Cup Assembly, Rear - Right	1	1
8	Arm Cup Assembly, Rear - Left	1	1
9	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
10	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	2
11	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	4
12	Bushing, Pivot	1	6
13	Washer, Nylon (3/8 x 5/8 x 3/64)	1	8
14	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	2
15	Washer, Steel (21/64 x 5/8 x 3/64")	1	8
16	Washer, Nylon (5/16 x 7/8 x 1/8")	1	4
17	Screw, Socket Flat Head (1/4-24 x 7/8")	1	2
19	Locknut (5/16-18)	1	2
20	Nut, Barrel (1/4-20)	1	4
21	Bushing (3/8 x 1/2 x 3/16)	1	4
22	Washer (1/2 x 13/16 x 1/32")	1	4
23	NLA - Washer (1/4 x 5/8 x 1/16")	1	4
24	Screw, Socket, Button (1/4-20 x 3/8")	1	4
25	Washer (1/4 x 5/8 x 3/32")	1	4
26	Nut, Hex Nylon (1/4-28)	1	4
27	Locknut, Thin (1/4-28)	1	4
28	Locknut (1/4-28)	1	2
29	Bracket, Cylinder Release, Black	1	2
30	Cylinder, Gas, Recliner	1	2
31	Cable Release Assembly	1	2
32	Lever, Cylinder Release	1	2
33	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	2
34	Bushing (5/16 x 1")	1	2
35	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
36	Locknut (5/16-24)	1	2
37	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	2
38	Handle, Cable Release, Black	1	2
39	Nut, Square (#10-32)	1	2
40	Stroller Handle Assembly - Right/Left	1	2
41	Tie Wrap (3-29/32" L)	1	2
42	NLA - Cane, Back, Recliner w/ Upholstery, Black - Right	1	1

Kit, Retro-Fit, Low Shear Recliner w/ Upholstery (14" W)

1

$1,204.00

A

Create/add to Wishlist

1

1171138

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Plate, Outer - Right	1	1
2	Plate, Outer - Left	1	1
3	Plate, Inner - Right	1	1
3	Plate, Inner - Left	1	1
4	Link, Upper, Reclining Back - Right	1	1
4	Link, Upper, Reclining Back - Left	1	1
5	Link, Lower, Reclining Back - Right	1	1
5	Link, Lower, Reclining Back - Left	1	1
6	Universal Washer	1	1
7	Plate, Spacer	1	2
8	Arm Cup Assembly, Rear - Right	1	1
8	Arm Cup Assembly, Rear - Left	1	1
9	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
10	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	2
11	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	4
12	Bushing, Pivot	1	6
13	Washer, Nylon (3/8 x 5/8 x 3/64)	1	8
14	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	2
15	Washer, Steel (21/64 x 5/8 x 3/64")	1	8
16	Washer, Nylon (5/16 x 7/8 x 1/8")	1	4
17	Screw, Socket Flat Head (1/4-24 x 7/8")	1	2
19	Locknut (5/16-18)	1	2
20	Nut, Barrel (1/4-20)	1	4
21	Bushing (3/8 x 1/2 x 3/16)	1	4
22	Washer (1/2 x 13/16 x 1/32")	1	4
23	NLA - Washer (1/4 x 5/8 x 1/16")	1	4
24	Screw, Socket, Button (1/4-20 x 3/8")	1	4
25	Washer (1/4 x 5/8 x 3/32")	1	4
26	Nut, Hex Nylon (1/4-28)	1	4
27	Locknut, Thin (1/4-28)	1	4
28	Locknut (1/4-28)	1	2
29	Bracket, Cylinder Release, Black	1	2
30	Cylinder, Gas, Recliner	1	2
31	Cable Release Assembly	1	2
32	Lever, Cylinder Release	1	2
33	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	2
34	Bushing (5/16 x 1")	1	2
35	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
36	Locknut (5/16-24)	1	2
37	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	2
38	Handle, Cable Release, Black	1	2
39	Nut, Square (#10-32)	1	2
40	Stroller Handle Assembly - Right/Left	1	2
41	Tie Wrap (3-29/32" L)	1	2
42	NLA - Cane, Back, Recliner w/ Upholstery, Black - Right	1	1
43	NLA - Cane, Back, Recliner w/ Upholstery, Black - Left	1	1
44	Upholstery, Back, Recliner, U240 (15" W x 24" H)	1	1
45	Package, Back Upholstery Screws w/ Washers (#10 x 7/8")	1	1
46	Package, Plug Button, Black (1")	1	1
	Instruction Sheet, Recliner Installation	1	1

Kit, Retro-Fit, Low Shear Recliner w/ Upholstery (15" W)

1

$1,204.00

A

Create/add to Wishlist

1

1171139

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
46	Package, Plug Button, Black (1")	1	1
	Instruction Sheet, Recliner Installation	1	1
2	Plate, Outer - Right	1	1
2	Plate, Outer - Left	1	1
3	Plate, Inner - Right	1	1
3	Plate, Inner - Left	1	1
4	Link, Upper, Reclining Back - Right	1	1
4	Link, Upper, Reclining Back - Left	1	1
5	Link, Lower, Reclining Back - Right	1	1
5	Link, Lower, Reclining Back - Left	1	1
6	Universal Washer	1	1
7	Plate, Spacer	1	2
8	Arm Cup Assembly, Rear - Right	1	1
8	Arm Cup Assembly, Rear - Left	1	1
9	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
10	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	2
11	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	4
12	Bushing, Pivot	1	6
13	Washer, Nylon (3/8 x 5/8 x 3/64)	1	8
14	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	2
15	Washer, Steel (21/64 x 5/8 x 3/64")	1	8
16	Washer, Nylon (5/16 x 7/8 x 1/8")	1	4
17	Screw, Socket Flat Head (1/4-24 x 7/8")	1	2
19	Locknut (5/16-18)	1	2
20	Nut, Barrel (1/4-20)	1	4
21	Bushing (3/8 x 1/2 x 3/16)	1	4
22	Washer (1/2 x 13/16 x 1/32")	1	4
23	NLA - Washer (1/4 x 5/8 x 1/16")	1	4
24	Screw, Socket, Button (1/4-20 x 3/8")	1	4
25	Washer (1/4 x 5/8 x 3/32")	1	4
26	Nut, Hex Nylon (1/4-28)	1	4
27	Locknut, Thin (1/4-28)	1	4
28	Locknut (1/4-28)	1	2
29	Bracket, Cylinder Release, Black	1	2
30	Cylinder, Gas, Recliner	1	2
31	Cable Release Assembly	1	2
32	Lever, Cylinder Release	1	2
33	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	2
34	Bushing (5/16 x 1")	1	2
35	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
36	Locknut (5/16-24)	1	2
37	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	2
38	Handle, Cable Release, Black	1	2
39	Nut, Square (#10-32)	1	2
40	Stroller Handle Assembly - Right/Left	1	2
41	Tie Wrap (3-29/32" L)	1	2
42	NLA - Cane, Back, Recliner w/ Upholstery, Black - Right	1	1
43	NLA - Cane, Back, Recliner w/ Upholstery, Black - Left	1	1
44	Upholstery, Back, Recliner, U240 (16" W x 24" H)	1	1
45	Package, Back Upholstery Screws w/ Washers (#10 x 7/8")	1	1

Kit, Retro-Fit, Low Shear Recliner w/ Upholstery (16" W)

1

$1,204.00

A

Create/add to Wishlist

1

1171140

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Plate, Outer - Right	1	1
2	Plate, Outer - Left	1	1
3	Plate, Inner - Right	1	1
3	Plate, Inner - Left	1	1
4	Link, Upper, Reclining Back - Right	1	1
4	Link, Upper, Reclining Back - Left	1	1
5	Link, Lower, Reclining Back - Right	1	1
5	Link, Lower, Reclining Back - Left	1	1
6	Universal Washer	1	2
7	Plate, Spacer	1	2
8	Arm Cup Assembly, Rear - Right	1	1
8	Arm Cup Assembly, Rear - Left	1	1
9	Screw, Hex Head (1/4-28 x 2-1/4")	1	4
10	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	2
11	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	4
12	Bushing, Pivot	1	6
13	Washer, Nylon (3/8 x 5/8 x 3/64)	1	8
14	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	2
15	Washer, Steel (21/64 x 5/8 x 3/64")	1	8
16	Washer, Nylon (5/16 x 7/8 x 1/8")	1	4
17	Screw, Socket Flat Head (1/4-24 x 7/8")	1	2
19	Locknut (5/16-18)	1	2
20	Nut, Barrel (1/4-20)	1	4
21	Bushing (3/8 x 1/2 x 3/16)	1	4
22	Washer (1/2 x 13/16 x 1/32")	1	4
23	NLA - Washer (1/4 x 5/8 x 1/16")	1	4
24	Screw, Socket, Button (1/4-20 x 3/8")	1	4
25	Washer (1/4 x 5/8 x 3/32")	1	4
26	Nut, Hex Nylon (1/4-28)	1	4
27	Locknut, Thin (1/4-28)	1	4
28	Locknut (1/4-28)	1	2
29	Bracket, Cylinder Release, Black	1	2
30	Cylinder, Gas, Recliner	1	2
31	Cable Release Assembly	1	2
32	Lever, Cylinder Release	1	2
33	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	2
34	Bushing (5/16 x 1")	1	2
35	NLA - Spacer, Coved (3/8 x 1 x 9/16")	1	2
36	Locknut (5/16-24)	1	2
37	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	2
38	Handle, Cable Release, Black	1	2
39	Nut, Square (#10-32)	1	2
40	Stroller Handle Assembly - Right/Left	1	2
41	Tie Wrap (3-29/32" L)	1	2
42	NLA - Cane, Back, Recliner w/ Upholstery, Black - Right	1	1
43	NLA - Cane, Back, Recliner w/ Upholstery, Black - Left	1	1
44	Upholstery, Back, Recliner, U240 (17" W x 24" H)	1	1
45	Package, Back Upholstery Screws w/ Washers (#10 x 7/8")	1	1
46	Package, Plug Button, Black (1")	1	1
	Instruction Sheet, Recliner Installation	1	1

Kit, Retro-Fit, Low Shear Recliner w/ Upholstery (17" W)

1

$1,091.00

A

Create/add to Wishlist

47

See Chart

Added to Cart

12-16" Wide Tube		14-18" Wide Tube		16-20" Wide Tube		18-22" Wide Tube		20-24" Wide Tube
1129473 MSRP: $16.00		1129474 MSRP: $16.00		1129475 MSRP: $16.00		1129476 MSRP: $16.00		1159455 MSRP: $15.00

Create/add to Wishlist

#47 Crossbrace Tube

N/A

Create/add to Wishlist

48

1134190

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
	Gear, Stroller Handle	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
	Locknut (1/4-28)	1	2
	Locknut (1/4-28)	1	4
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
3	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
4	Gear, Stroller Handle	1	2
5	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
6	Locknut (1/4-28)	1	2
7	Locknut (1/4-28)	1	4
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
3	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
4	Gear, Stroller Handle	1	2
5	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
6	Locknut (1/4-28)	1	2
7	Locknut (1/4-28)	1	4
2	Screw, Socket Button Head (1/4-28 x 1-1/4")	1	2
3	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
4	Gear, Stroller Handle	1	2
5	Screw, Socket Head (1/4-28 x 1-1/4")	1	2
6	Locknut (1/4-28)	1	2
7	Locknut (1/4-28)	1	4

Kit, Stroller Handle, Adjustable Angle - Outside Mount

1

$132.00

B

Note Code	Definition
A	Kit includes items 2 - 17, and 19 - 46.
B	Includes Gear, Screws, and Nuts.

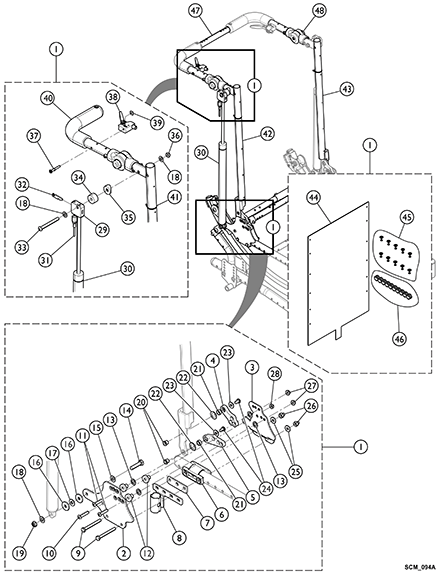

Recliner - LS - Retro-Fit Kit w/ Upholstery (14 - 17" W)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Recliner - LS - Retro-Fit Kit w/ Upholstery (14 - 17" W)

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
