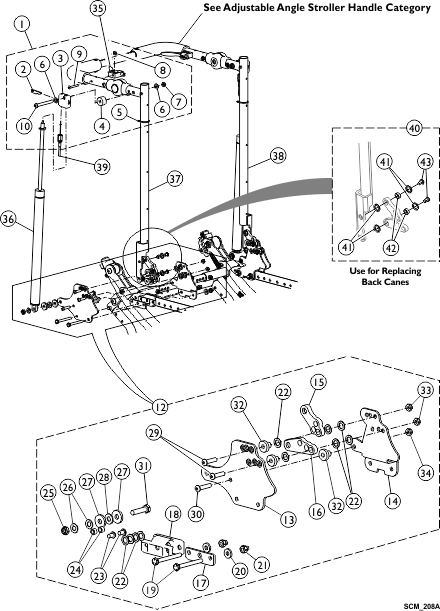

Reclining Back Hardware (LOSHEAR) Option - One Point Arms (Before 8/21/15)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1170571

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
4	Bushing (5/16 x 1")	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Locknut (5/16-24)	1	1
7	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
8	Nut, Square (#10-32)	1	1
9	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	1
10	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Locknut (5/16-24)	1	1
7	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
8	Nut, Square (#10-32)	1	1
9	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	1
10	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
4	Bushing (5/16 x 1")	1	1
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
4	Bushing (5/16 x 1")	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	1
7	Locknut (5/16-24)	1	1
8	Nut, Square (#10-32)	1	1
9	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
10	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
8	Nut, Square (#10-32)	1	1
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
4	Bushing (5/16 x 1")	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	1
7	Locknut (5/16-24)	1	1
9	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
10	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
4	Bushing (5/16 x 1")	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Locknut (5/16-24)	1	1
7	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
8	Nut, Square (#10-32)	1	1
9	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	1
10	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
4	Bushing (5/16 x 1")	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Locknut (5/16-24)	1	1
7	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
8	Nut, Square (#10-32)	1	1
9	NLA - Screw, Socket Button Head (5/16-24 x 1-3/4")	1	1
10	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
4	Bushing (5/16 x 1")	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	1
7	Locknut (5/16-24)	1	1
8	Nut, Square (#10-32)	1	1
9	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
10	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
2	Lever, Cylinder Release	1	1
3	Bracket, Cylinder Release, Black	1	1
4	Bushing (5/16 x 1")	1	1
5	Tie Wrap (3-29/32" L)	1	1
6	Screw, Button Head, Socket, Cap (5/16-24 x 2-3/4")	1	1
7	Locknut (5/16-24)	1	1
8	Nut, Square (#10-32)	1	1
9	Screw, Phillip Pan Head (10-32 x 1-3/8")	1	1
10	Washer, Steel (21/64 x 5/8 x 3/64")	1	2

Kit, Hardware, Cylinder Cable Release

$66.00

Create/add to Wishlist

1170573

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Plate, Outer - Right	1	1
14	Plate, Inner - Right	1	1
15	Link, Upper, Reclining Back - Right	1	1
16	Link, Lower, Reclining Back - Right	1	1
17	Plate, Spacer	1	1
18	Universal Washer	1	1
19	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
20	Washer, Flat	1	2
21	Nut, Hex Nylon (1/4-28)	1	2
22	Washer, Nylon (3/8 x 5/8 x 1/32")	1	10
23	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	2
24	Bushing, Articulation	1	2
25	Locknut (5/16-18)	1	1
26	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
27	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
28	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
29	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	2
30	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	1
31	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
32	Bushing, Pivot	1	3
33	Locknut, Thin (1/4-28)	1	2
34	Locknut (1/4-28)	1	1
13	Plate, Outer - Right	1	1
14	Plate, Inner - Right	1	1
15	Link, Upper, Reclining Back - Right	1	1
16	Link, Lower, Reclining Back - Right	1	1
17	Plate, Spacer	1	1
18	Universal Washer	1	1
19	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
20	Washer, Flat	1	2
21	Nut, Hex Nylon (1/4-28)	1	2
22	Washer, Nylon (3/8 x 5/8 x 1/32")	1	10
23	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	2
24	Bushing, Articulation	1	2
25	Locknut (5/16-18)	1	1
26	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
27	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
28	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
29	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	2
30	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	1
31	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
32	Bushing, Pivot	1	3
33	Locknut, Thin (1/4-28)	1	2
34	Locknut (1/4-28)	1	1

NLA - Kit, Hardware, Reclining Back - Right

N/A

B ,F

Create/add to Wishlist

1170574

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
33	Locknut, Thin (1/4-28)	1	2
34	Locknut (1/4-28)	1	1
13	Plate, Outer - Left	1	1
14	Plate, Inner - Left	1	1
15	Link, Upper, Reclining Back - Left	1	1
16	Link, Lower, Reclining Back - Left	1	1
17	Plate, Spacer	1	1
18	Universal Washer	1	1
19	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
20	Washer (1/4 x 5/8 x 3/32")	1	2
21	Nut, Hex Nylon (1/4-28)	1	2
22	Washer, Nylon (3/8 x 5/8 x 1/32")	1	10
23	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	2
24	Bushing, Articulation	1	2
25	Locknut (5/16-18)	1	1
26	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
27	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
28	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
29	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	2
30	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	1
31	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
32	Bushing, Pivot	1	3
33	Locknut, Thin (1/4-28)	1	2
34	Locknut (1/4-28)	1	1
13	Plate, Outer - Left	1	1
14	Plate, Inner - Left	1	1
15	Link, Upper, Reclining Back - Left	1	1
16	Link, Lower, Reclining Back - Left	1	1
17	Plate, Spacer	1	1
18	Universal Washer	1	1
19	Screw, Hex Head (1/4-28 x 2-1/4")	1	2
20	Washer (1/4 x 5/8 x 3/32")	1	2
21	Nut, Hex Nylon (1/4-28)	1	2
22	Washer, Nylon (3/8 x 5/8 x 1/32")	1	10
23	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	2
24	Bushing, Articulation	1	2
25	Locknut (5/16-18)	1	1
26	Washer, Steel (21/64 x 5/8 x 3/64")	1	2
27	Washer, Nylon (5/16 x 7/8 x 1/8")	1	2
28	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1
29	Screw, Button Head, Socket, Cap (1/4-28 x 1")	1	2
30	Screw, Socket Button Head (1/4-28 x 1-1/8")	1	1
31	Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")	1	1
32	Bushing, Pivot	1	3

NLA - Kit, Hardware, Reclining Back - Left

N/A

B ,F

Create/add to Wishlist

1078318

Handle, Cable Release, Black

$10.00

Create/add to Wishlist

1190021

Cylinder, Gas, Recliner

$84.00

Create/add to Wishlist

1170530

NLA - Cane, Back, Recliner w/ Upholstery, Black - Right

N/A

Create/add to Wishlist

1170531

NLA - Cane, Back, Recliner w/ Upholstery, Black - Left

N/A

Create/add to Wishlist

1082638

Cable Release Assembly

$36.00

Create/add to Wishlist

1192514

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
41	Washer, Nylon (3/8 x 5/8 x 1/32")	1	8
42	Bushing, Articulation	1	4
43	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	4
	Loctite 271, 5 ML	1	1
	Instruction Sheet, Low Shear Back Cane Mounting Hardware	1	1
41	Washer, Nylon (3/8 x 5/8 x 1/32")	1	8
42	Bushing, Articulation	1	4
43	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	4
	Loctite 271, 5 ML	1	1
	Instruction Sheet, Low Shear Back Cane Mounting Hardware	1	1
42	Washer, Nylon (3/8 x 5/8 x 1/32")	1	8
43	Bushing, Articulation	1	4
44	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	4
	Loctite 271, 5 ML	1	1
	Instruction Sheet, Low Shear Back Cane Mounting Hardware	1	1
41	Washer, Nylon (3/8 x 5/8 x 1/32")	1	8
42	Bushing, Articulation	1	4
43	Screw, Button Head, Socket, Cap (1/4-28 x 3/8")	1	4
	Loctite 271, 5 ML	1	1
	Instruction Sheet, Low Shear Back Cane Mounting Hardware	1	1

Kit, Hardware, Loshear Reclining Back

$15.00

Create/add to Wishlist

1134425

Package, Plug Button, Black (1")

C ,D

Create/add to Wishlist

1070998

Headrest Extension Tube Assembly, Black - Right

$18.00

Create/add to Wishlist

1070999

Headrest Extension Tube Assembly, Black - Left

$18.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 10.
B	Includes items 13 - 34. 1170573 and 1170574 is No Longer Available.
C	Plug Buttons are not used when Headrest Extension Tubes are used.
D	Not shown in illustration.
E	Includes Loctite 271, Instruction Sheet and Items 41, 42, and 43. Use when replacing the Back Canes only.
F	No Longer Available. Please see category "Recliner - Retro-Fit Kit w/ Upholstery" for replacement Back Canes or Reclining Back Hardware.
