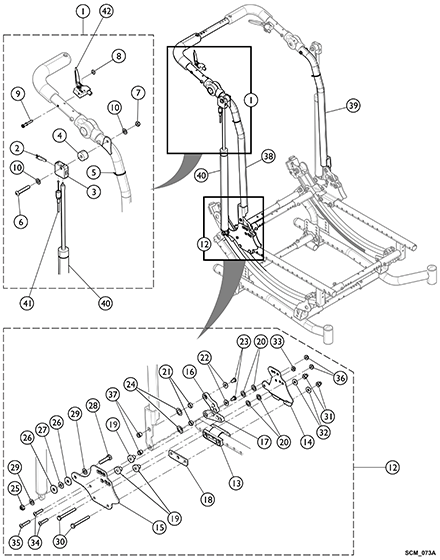

Kit, Hardware, Reclining Back w/ Two Point Arms - Left Contains:
Item
Part/Kit Description
Qty/Pkg
Qty/Asbly
13
Universal Washer
1
1
14
Plate, Inner - Left
1
1
15
Plate, Outer - Left
1
1
16
Link, Upper, Reclining Back - Left
1
1
17
Link, Lower, Reclining Back - Left
1
1
19
Bushing, Pivot
1
3
20
Washer, Nylon (3/8 x 5/8 x 3/64)
1
4
21
Bushing (3/8 x 1/2 x 3/16)
1
2
22
NLA - Washer (1/4 x 5/8 x 1/16")
1
2
23
Screw, Socket, Button (1/4-20 x 3/8")
1
2
24
Washer (1/2 x 13/16 x 1/32")
1
2
25
Locknut (5/16-18)
1
1
26
Washer, Nylon (5/16 x 7/8 x 1/8")
1
2
27
Washer, Nylon (5/16 x 11/16 x 1/16")
1
1
28
Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")
1
1
29
Washer, Steel (21/64 x 5/8 x 3/64")
1
2
30
Screw, Hex Head (1/4-28 x 2-1/4")
1
2
31
Nut, Hex Nylon (1/4-28)
1
2
32
Washer (1/4 x 5/8 x 3/32")
1
2
33
Locknut (1/4-28)
1
1
34
Screw, Button Head, Socket, Cap (1/4-28 x 1")
1
2
35
Screw, Socket Button Head (1/4-28 x 1-1/8")
1
1
36
Locknut, Thin (1/4-28)
1
2
37
Nut, Barrel (1/4-20)
1
2
38
Arm Cup Assembly, Rear - Left
1
1
Bushing, Pivot
1
3
Bushing (3/8 x 1/2 x 3/16)
1
2
Screw, Hex Head (1/4-28 x 2-1/4")
1
2
Washer (1/4 x 5/8 x 3/32")
1
2
Nut, Hex Nylon (1/4-28)
1
2
Screw, Button Head, Socket, Cap (1/4-28 x 1")
1
2
Screw, Socket Button Head (1/4-28 x 1-1/8")
1
1
Arm Cup Assembly, Rear - Left
1
1
Locknut, Thin (1/4-28)
1
2
Locknut (1/4-28)
1
1
Washer, Nylon (3/8 x 5/8 x 3/64)
1
4
Nut, Barrel (1/4-20)
1
2
NLA - Washer (1/4 x 5/8 x 1/16")
1
2
Universal Washer
1
1
Plate, Inner - Left
1
1
Plate, Outer - Left
1
1
Link, Upper, Reclining Back - Left
1
1
Link, Lower, Reclining Back - Left
1
1
Plate, Spacer
1
1
Washer, Steel (21/64 x 5/8 x 3/64")
1
2
Washer (1/2 x 13/16 x 1/32")
1
2
Screw, Socket, Button (1/4-20 x 3/8")
1
2
Locknut (5/16-18)
1
1
Washer, Nylon (5/16 x 11/16 x 1/16")
1
1
Washer, Nylon (5/16 x 7/8 x 1/8")
1
2
Screw, Hex Head w/ Patch (5/16-18 x 1-1/4")
1
1
Kit, Hardware, Reclining Back w/ Two Point Arms - Left
1
1
$179.00
B
Create/add to Wishlist
Create/add to Wishlist
39
1190033
NLA - Cane, Back, Recliner, Black - RIght
1
1
N/A
C
Create/add to Wishlist
Create/add to Wishlist
40
1190034
NLA - Cane, Back, Recliner, Black - Left
1
1
N/A
C
Create/add to Wishlist
Create/add to Wishlist
41
1190021
Cylinder, Gas, Recliner
1
2
$84.00
Create/add to Wishlist
Create/add to Wishlist
42
1082638
Cable Release Assembly
1
2
$36.00
Create/add to Wishlist
Create/add to Wishlist
43
1078318
Handle, Cable Release, Black
1
2
$10.00
Create/add to Wishlist
Create/add to Wishlist
Assembly Part Notes
Note Code
Definition
A
Includes items 2 - 10.
B
Includes items 13 - 38.
C
Please use Retro-Fit Kit part number 1171136 to order replacement Back Canes. See "Recliner - Low Shear - Retro-fit w/o Upholstery" category for more information.
