Carriage Assembly - 820DLX & 820-3MDLX

Print this page

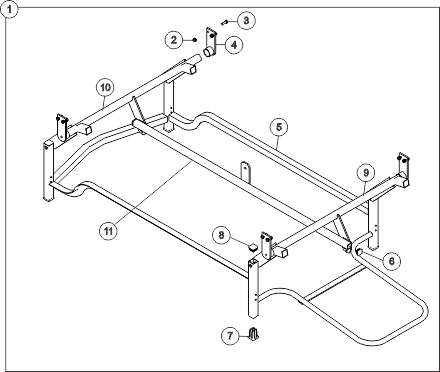

Carriage Floor Lock

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1140821	Carriage, Floor Lock Reverse Assembly	1	1	$234.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	000037	NLA - Nut, Keps (5/16-18)	1	8	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	001758	Screw, Hex Head (5/16-18 x 1")	1	8			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	025187	Support, Lift Crank	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1140820	Frame, Carriage Lock Floor Reverse	1	1	$86.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	020717	Glide, Cap	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1131077	Foot, Rubber	1	4	$4.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1012756	Plug Button, Black (1-1/4")	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	009077	Kit, Caster	1	1	$39.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	51000M083	Socket, Caster	1	4	$9.00	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1123551	Caster Assembly, Swivel w/ Brake (3")	1	2	$15.00	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1123549	Caster Assembly, Swivel w/o Brake (3")	1	2	$15.00	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1124051	Head End Lift Crank	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1124052	Foot End Crank	1	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1124032	Lift Bar	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes: Items 1-8.
B	Not Shown
C	Includes: 4 Sockets, 2 Locking Casters and 2 Non-Locking Casters.
D	Included in part # 009077.

Catalog Literature

Parts Books for ICC - Bed IH820DLX, IH820-3MDLX, SC900DLX
