Carriage Assembly - SC900DLX

Print this page

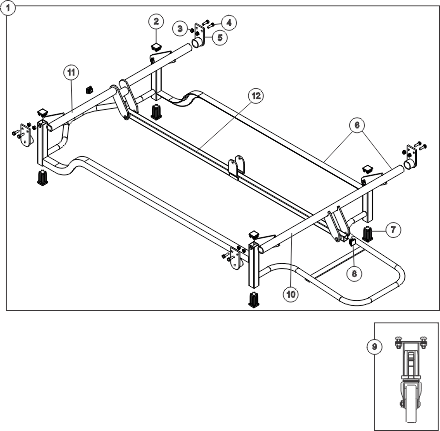

Carriage Assembly - SC900DLX

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1137378	Carriage Assembly - SC900DLX	1	1	$162.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	027047	Plug Button with Hole (1-1/4" Square)	1	4	$6.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	000037	NLA - Nut, Keps (5/16-18)	1	8	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	001758	Screw, Hex Head (5/16-18 x 1")	1	8			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1133050	Support, Lift Crank	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1137377	Frame, Carriage - SC900DLX	1	1	$128.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1131077	Foot, Rubber	1	4	$4.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	020717	Glide, Cap	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	027027	Kit, Caster 3" Swivel w/ Bracket	1	1	$30.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	000050	Nut, Keps (1/4-20)	1	8		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	51000M789	Screw, Phillips Pan Head (1/4-20 x 3/4")	1	8		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	027025	Bracket, Caster	1	4	$6.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	51000M083	Socket, Caster	1	4	$9.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1123551	Caster Assembly, Swivel w/ Brake (3")	1	2	$15.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1123549	Caster Assembly, Swivel w/o Brake (3")	1	2	$15.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	027016	Crank, Lift - Head End	1	1	$35.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	026999	Crank, Lift - Foot End	1	1	$50.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	027001	Bar, Lift	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes: Items 2-8.
B	Includes: 4 Brackets, 4 Sockets, 8 Screws, 8 Nuts, 2 Locking Casters and 2 Non-Locking Casters. See page titled "Caster Parts" for additional details"
C	Included in part number 027027 - Caster Kit

Catalog Literature

Parts Books for ICC - Bed IH820DLX, IH820-3MDLX, SC900DLX
