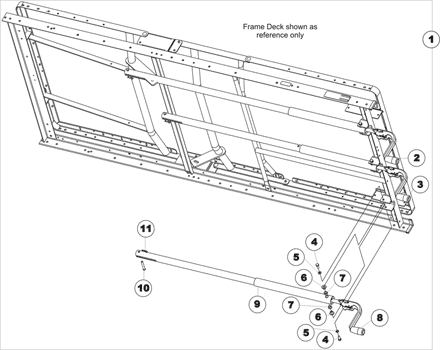

Manual Pull Tube & Crank Handle - 820DLX
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1141407 | NLA - Manual, Head Crank and Pull Tube Assembly | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1161917 | NLA - Manual, Hi-Lo Crank and Pull Tube Assembly | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 001741 | Screw, Hex Head (5/16-18 x 3/4") | 1 | 6 |
$2.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 001008 | Washer, Split Lock (5/16") | 1 | 6 |
$2.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 001443 | Bushing, Shoulder - Pivot | 1 | 6 |
$3.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 001405 | Bushing, Flanged, Nylon | 1 | 6 |
$3.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1141406 | Manual, Foot Crank and Pull Tube Assembly | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
9 | 51000M191 | Cover, Pull Tube (Head/Foot) | 1 | 3 |
Create/add to WishlistCreate/add to Wishlist |
||
10 | 005952 | Pin, Clevis (5/16 x 2-1/8") | 1 | 3 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 51000M743 | Pin, Hitch (3/8 x 1-3/16") | 1 | 3 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes: Items 1-11. |
