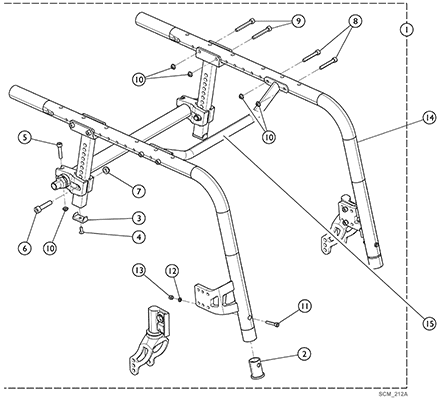

Frames - Side w/ Hardware

Print this page

Frames - Side w/ Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1180305

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Screw (M6 x 1 x 45mm)	1	4
10	NLA - Locknut (M6 x 1)	1	10
11	Screw, Socket Head, Cap (M5 x .8 x 30mm)	1	2
12	Washer, Locking Split (#10)	1	2
13	Nut, Lock (M5 x .8)	1	2
2	Spacer, Footrest	1	2
3	Bumper, Seat Support	1	2
4	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	2
5	NLA - Screw, Socket Head (M6 x 30mm)	1	2
6	Screw, Socket Head (M8 x 1.25 x 30mm)	1	2
7	NLA - Locknut (M8 x 1.25)	1	2
8	NLA - Screw, Socket Head Cap (M6 x 1 x 40mm)	1	4

Kit, Hardware, Frame, Reveal

1

1

A

Create/add to Wishlist

Create/add to Wishlist

14

See Chart

Added to Cart

Frame Angle		Caster Size		Fork Style		Right		Left
75 Degree		4 in.		STD or FLOSF		8881172595- NLA		8881172596- NLA
75 Degree Tapered		4 in.		STD or FLOSF		8881184043- NLA		8881184044- NLA
75 Degree		5 in.		FLOSF		8881179050		8881179051- NLA
75 Degree Tapered		5 in.		FLOSF		8881184053		8881184054
75 Degree		6 in.		STD		8881179053- NLA		8881179054- NLA
75 Degree Tapered		6 in.		STD		8881184061- NLA		8881184062- NLA
85 Degree Tapered		4 in.		STD or FLOSF		8881184049- NLA		8881184050- NLA
85 Degree		4 in.		STD or FLOSF		8881172613- NLA		8881172614- NLA
85 Degree		5 in.		FLOSF		8881179059- NLA		8881179060- NLA
85 Degree Tapered		5 in.		FLOSF		8881184057		8881184058
85 Degree		6 in.		STD		8881179056- NLA		8881179057- NLA
85 Degree Tapered		6 in.		STD		8881184065- NLA		8881184066- NLA

Create/add to Wishlist

Create/add to Wishlist

Item #14 - Side Frame Assembly

N/A

N/A

N/A

Create/add to Wishlist

Create/add to Wishlist

15

See Chart

Added to Cart

Description		Part Number
Rigidizer Bar (12 in.)		1172570
Rigidizer Bar (13 in.)		1172571
Rigidizer Bar (14 in.)		1172572
Rigidizer Bar (15 in.)		1172573
Rigidizer Bar (16 in.)		1172574
Rigidizer Bar (17 in.)		1172575
Rigidizer Bar (18 in.)		1172576 MSRP: $37.00
Rigidizer Bar (19 in.)		1172577
Rigidizer Bar (20 in.)		1172578

Create/add to Wishlist

Create/add to Wishlist

Item #15 - Rigidizer Bar

N/A

N/A

N/A

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 13.

Catalog Literature

Parts Books for Reveal™ Wheelchair
