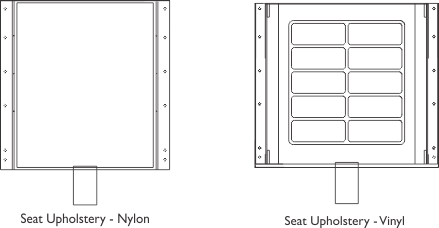

Upholstery - Seat

Print this page

Upholstery - Seat

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Width x Depth		SX5 & SX5 Recliner Nylon		SX5 & SX5 Recliner Vinyl		EX2/EXI Vinyl
14 x 16"		Note-A 1127529 MSRP: $71.00		Note-B 8881127539 MSRP: $71.00		N/A
14 x 18"		Note-A 1127530		Note-B 8881127540 MSRP: $63.00		N/A
16 x 16"		Note-A 1127531 MSRP: $37.00		Note-B 8881127523 MSRP: $71.00		Note-B 8881127523 MSRP: $71.00
16 x 18"		Note-A 1127532 MSRP: $45.00		Note-B 8881127524 MSRP: $42.00		Note-B 8881127524 MSRP: $42.00
18 x 16"		Note-A 1127533 MSRP: $37.00		Note-B 8881127525 MSRP: $32.00		Note-B 8881127525 MSRP: $32.00
18 x 18"		Note-A 1127534 MSRP: $49.00		Note-B 8881194395 MSRP: $57.00		Note-B 8881127512 MSRP: $42.00
20 x 16"		Note-A 1127535 MSRP: $47.00		Note-B 8881127527 MSRP: $71.00		Note-B 8881127527 MSRP: $71.00
20 x 18"		Note-A 1194393 MSRP: $57.00		Note-B 8881127528 MSRP: $44.00		Note-B 8881127528 MSRP: $44.00
22 x 16"		Note-A 1127537 MSRP: $71.00		Note-B 8881127547 MSRP: $51.00		N/A
22 x 18"		Note-A 1194394 MSRP: $57.00		Note-B 8881194396 MSRP: $57.00		N/A

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Seat Upholstery Kits

N/A

N/A

N/A

Catalog Literature

Parts Books for Tracer® EX2 Tracer® EXI Tracer® SX5 Tracer® SX5 Recliner

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, U240 (14" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (14" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, U240 (14" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, Vinyl (14" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, U240 (16" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (16" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (16" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, U240 (16" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, Vinyl (16" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, Vinyl (16" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, U240 (18" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (18" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (18" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, U240 (18" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, Vinyl (18" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head (#12-14 x 7/8")	1	12
Washer (1/4 x 3/4 x 3/32")	1	12
Upholstery, Seat, Vinyl (18" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, U240 (20" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (20" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (20" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, U240 (20" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, Vinyl (20" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, Vinyl (20" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, U240 (22" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	10
Upholstery, Seat, Vinyl (22" W x 16" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, U240 (22" W x 18" D)	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Phillips Oval Head w/ Washer (#10-16 x 7/8")	1	12
Upholstery, Seat, Vinyl (22" W x 18" D)	1	1
