Footrest - Adjustable Angle - Adducted High Mounted

Print this page

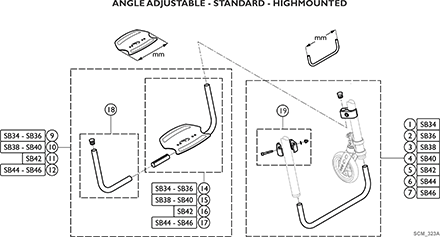

Adducted Angle High Mmounted Footrest

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1561215	Tube Set, Footrest, High Position, 315mm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1561216	Tube Set, Footrest, High Position, 335mm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1561217	Tube Set, Footrest, High Position, 355mm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1561218	Tube Set, Footrest, High Position, 375mm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1561219	Tube Set, Footrest, High Position, 395mm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1561220	Tube Set, Footrest, High Position, 415mm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1561221	Tube Set, Footrest, High Position, 435mm	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1561313	Footrest, Adjustable Angle 222mm Footrest, High Mount	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1561314	Footrest, Adjustable Angle 250mm Footrest, High Mount	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1561315	Footrest, Adjustable Angle 280mm Footrest, High Mount	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1561316	Footrest, Adjustable Angle 308mm Footrest, High Mount	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1561143	Footplate 222mm w/ Clamping Part	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1561144	Footplate 250mm w/ Clamping Part	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1561145	Footplate 280mm w/ Clamping Part	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1561204	Footplate 308mm w/ Clamping Part	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1561317	Telescopic kit, Footrest, Adjustable Angle mounted in high position	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1544613	Kit, Clamping, Footrest, High Mounted (Pair)	2	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Catalog Literature

Parts Books for Küschall® Advance™ Manual Wheelchair
