Electronics and Pendants - BC2380/76

Print this page

Electronics and Pendants - BC2380/76

Click to Enlarge

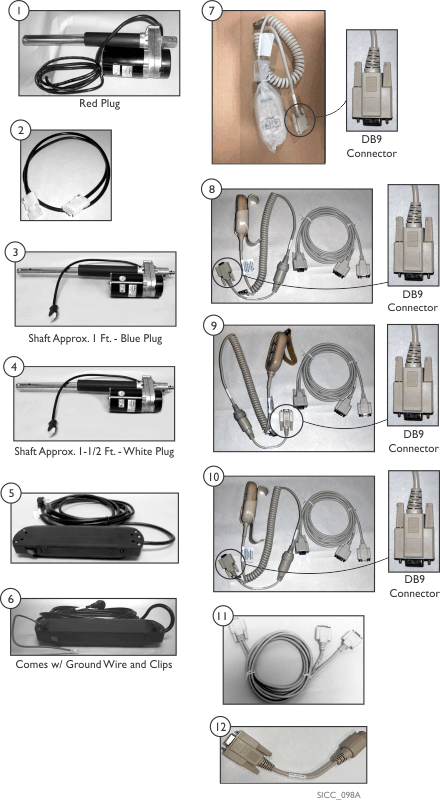

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	MTRM1633	Actuator, Head (Red Plug) Ref. #61831-0795280-01	1	1	$401.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	MTRM1633HC80	NLA - Actuator, Head - Bed (80")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	MISC022	Cable, Extension - Head Motor	1	1	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	MTRM1702	Foot Actuator (Blue Plug)	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	MTRM1750	NLA - Hilo Actuator (White Plug)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	JNCTNBOX	NLA - Junction Control Box	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	JNCTNBOXKIT1	NLA - Junction Control Box	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	PNDNT2FNCIV	Pendant, 2 Function	1	1	$36.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1190228	Kit, Pendant, New Assist Rails, Linak # PNDNT-6FNC-1-2	1	1	$58.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1190233	Kit, Pendant, Full/Partial Rails, Linak # PNDNT-6FNC-1-2	1	1	$58.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	PNDNTKIT3	NLA - Kit, Pendant, Assist Rails (Old Square), Linak # PNDNT-6FNC-1-2	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	PNDNTYCABLE	Cable, Y, Pendant	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1190225	Cable, Conversion	1	1	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Beds manufactured After 11/29/01
B	Beds manufactured Before 11/29/01
C	Reference Linak #PNDNT-6FNC-1-2

Catalog Literature

Parts Books for ICC - Echo Beds BC1180/76, BC2380/76, BD2380/76, BE1180/76-BE2180/76
