Electronics and Pendants - BC1180/76

Print this page

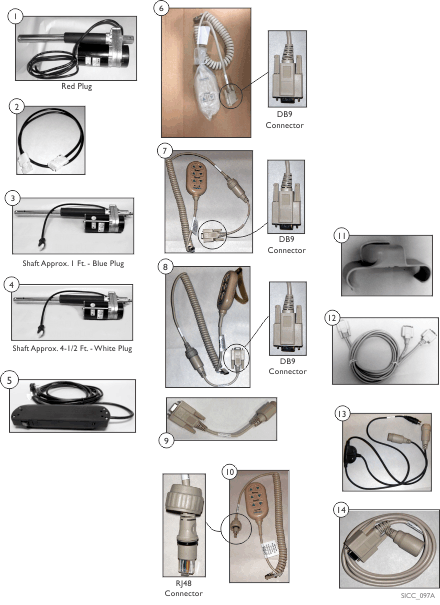

Electronics and Pendants - BC1180/76

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	MTRM2133	NLA - Actuator, Head (Red Plug) rEF. #61832-1005270-01	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	MISC022	Cable, Extension - Head Motor	1	1	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	MTRM2102	NLA - Actuator, Foot (Blue Plug) 115V ~ 60Hz	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	MTRM2150	Actuator, HILO (White Plug) 115V ~ 60Hz	1	1	$185.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	JNCTNBOX	NLA - Junction Control Box	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	PNDNT2FNCIV	Pendant, 2 Function	1	1	$36.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1190227	Pendant, Six Function (w/ Loop Adhesive Back Strip and DB9 Connector) Linak # PNDNT-6FNC-1-2	1	1	$52.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1190232	Pendant, Six Function (w/ Strap and DB9 Connector) Linak # PNDNT-6FNC-1-2	1	1	$58.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1190225	Cable, Conversion	1	1	$13.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	PNDNT6FNCIV3	Pendant, Six Function w/ RJ48 Connector) Linak # PNDNT-6FNC-1-2	1	1	$45.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1186847	Holster, Pendant	1	1	$6.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	PNDNTYCABLE	Cable, Y, Pendant	1	1	$9.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	JNCTNDC40	Cable, Y, Pendant	1	1	$15.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	PNDNTEXTCABLE	Cable, Pendant	1	1	$11.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Beds manufactured Before 11/22/07
B	Beds manufactured After 11/21/07

Catalog Literature

Parts Books for ICC - Echo Beds BC1180/76, BC2380/76, BD2380/76, BE1180/76-BE2180/76
