Electronics and Pendants - BE1180/76-BE2180/76

Print this page

Electronics and Pendants - BE1180/76-BE2180/76

Click to Enlarge

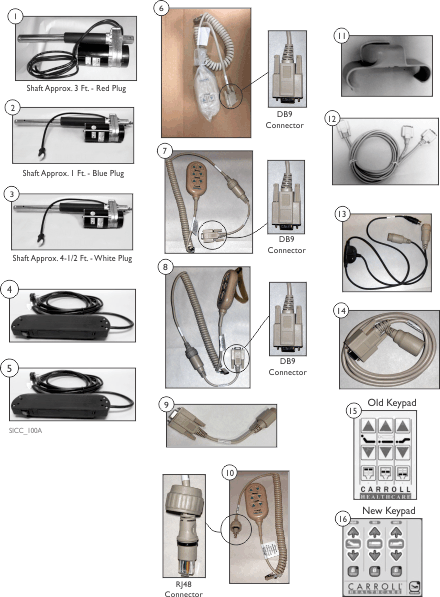

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	MTRM2103	Actuator, Head (Red Plug) 115V ~ 60Hz	1	1	$165.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	MTRM2102	NLA - Actuator, Foot (Blue Plug) 115V ~ 60Hz	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	MTRM2150	Actuator, HILO (White Plug) 115V ~ 60Hz	1	1	$185.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	JNCTNBOX	NLA - Junction Control Box	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	JNCTNBOXMEM	NLA - Junction Box Membrane	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	PNDNT2FNCIV	Pendant, 2 Function	1	1	$36.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1190227	Pendant, Six Function (w/ Loop Adhesive Back Strip and DB9 Connector) Linak # PNDNT-6FNC-1-2	1	1	$52.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1190232	Pendant, Six Function (w/ Strap and DB9 Connector) Linak # PNDNT-6FNC-1-2	1	1	$58.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1190225	Cable, Conversion	1	1	$13.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	PNDNT6FNCIV3	Pendant, Six Function w/ RJ48 Connector) Linak # PNDNT-6FNC-1-2	1	1	$45.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1186847	Holster, Pendant	1	1	$6.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	PNDNTYCABLE	Cable, Y, Pendant	1	1	$9.00	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	JNCTNDC40	Cable, Y, Pendant	1	1	$15.00	G ,H	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	PNDNTEXTCABLE	Cable, Pendant	1	1	$11.00	G ,H	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	OLD KEYPAD	NLA - Membrane Pad for 151 Only	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	JNCTNDC20C	Membrane Pad for 151 Only	1	1	$441.00	I	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Reference #61833-1253270-01
B	Reference #61833-0703270-01
C	Reference #61833-1955270-02. Beds manufactured between 8/03/04-10/02/07 requires TBR118164112P (Order through SFI Medical Equipment Solutions).
D	Reference #NAX5105-3A29MPZ
E	For use on Membrane Beds only After 8/16/05
F	Beds manufactured Before 11/22/07
G	Beds manufactured After 11/21/07
H	Item numbers 13 and 14 are required to be used together.
I	Beds built Before 8/16/04 need to replace Head and Footboard with New Membrane Pad.

Catalog Literature

Parts Books for ICC - Echo Beds BC1180/76, BC2380/76, BD2380/76, BE1180/76-BE2180/76
