Electronics and Pendants - BD2380/76

Print this page

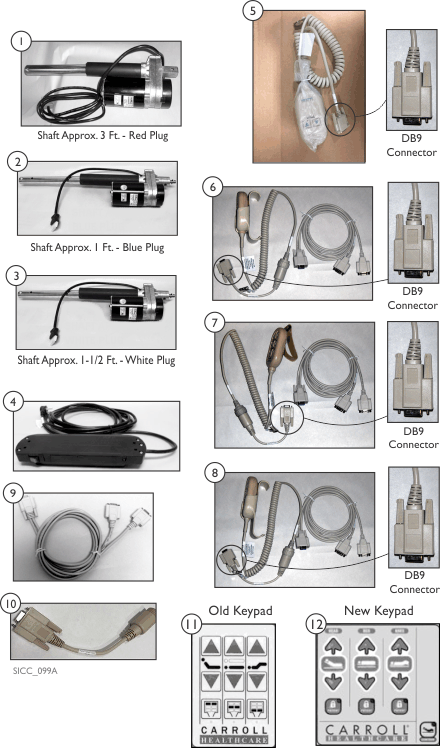

Electronics and Pendants - BD2380/76

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	MTRM1703	Head Actuator (Red Plug)	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	MTRM1702	Foot Actuator (Blue Plug)	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	MTRM2150	Actuator, HILO (White Plug) 115V ~ 60Hz	1	1	$185.00	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	KIT82	NLA - HiLo Actuator (White Plug)	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	JNCTNBOX	NLA - Junction Control Box	1	1	N/A	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	PNDNT2FNCIV	Pendant, 2 Function	1	1	$36.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1190228	Kit, Pendant, New Assist Rails, Linak # PNDNT-6FNC-1-2	1	1	$58.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1190233	Kit, Pendant, Full/Partial Rails, Linak # PNDNT-6FNC-1-2	1	1	$58.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	PNDNTKIT3	NLA - Kit, Pendant, Assist Rails (Old Square), Linak # PNDNT-6FNC-1-2	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	PNDNTYCABLE	Cable, Y, Pendant	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1190225	Cable, Conversion	1	1	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	OLD KEYPAD	NLA - Membrane Pad for 151 Only	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	JNCTNDC20C	Membrane Pad for 151 Only	1	1	$441.00	G	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Reference #V07508AW76U
B	Reference #V07508AX76U
C	Reference Linak #PNDNT-6FNC-1-2
D	Used After 4/19/00. Must use second hole on shaft.
E	Used Before 4/20/00 White Plug. Ref. 6183M-1905220-01
F	Used After 11/29/01. Ref. NAX5105-3A29MPZ
G	Beds built Before 8/16/04 need to replace Head and Footboards with New Membrane Pad.

Catalog Literature

Parts Books for ICC - Echo Beds BC1180/76, BC2380/76, BD2380/76, BE1180/76-BE2180/76
