Steel and Frame Parts - BC2380/76

Print this page

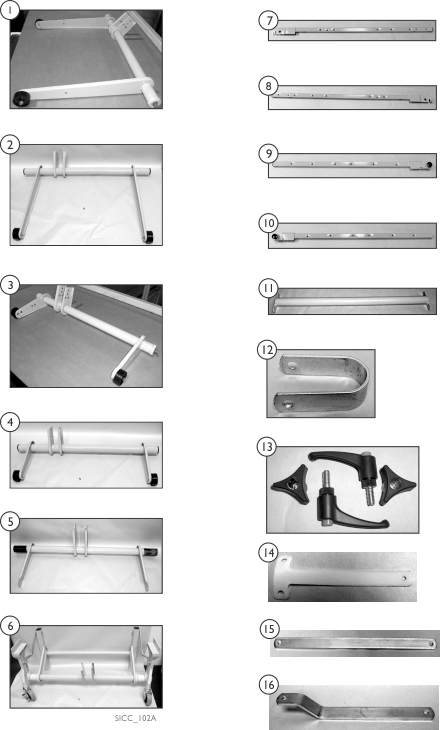

Steel and Frame Parts - BC2380/76

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	GATHEADELHASY	NLA - Head Gatch	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1185149	NLA - Head Gatch Assembly	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	GATFOOTELHASY	NLA - Foot Gatch	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	GATFOOTASSY1	NLA - Foot Gatch	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	HILO0005EPNT	Hilo Gatch, Manual/Electric	1	1		C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	LEG0012	NLA - Hilo Leg Assembly - Both	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	MNR19RHCHP	NLA - Main Rail, Head End - Right Side	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	MNR19LHCHP	NLA - Main Rail, Head End - Left Side	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	MNR19RHCFP	NLA - Main Rail, Foot End - Right Side	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	MNR19LHCFP	NLA - Main Rail, Foot End - Left Side	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	MTRMNTHCPNT	NLA - Tube, Head Motor Mount	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	MTRBRACKP1	Bracket, Motor Mount, Floating	1	1		D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	KITHOMECARE	Kit, Hardware	1	1	$55.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	MTRDRVTUBEGLI	NLA - Glide, Tube - Hilo Drive	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	LNK0015PNT	NLA - Drive Tube Linkage	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	LNK0016PNT	NLA - Leg Linkage, Die Cast	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Used Before 8/30/01.
B	Used After 8/30/01.
C	Used After 4/25/01
D	Order through SFI Medical Solutions.

Catalog Literature

Parts Books for ICC - Echo Beds BC1180/76, BC2380/76, BD2380/76, BE1180/76-BE2180/76
