Wheels - Rear - Axle Plates w/ Hardware (A1577 - Composite Wheels)

Print this page

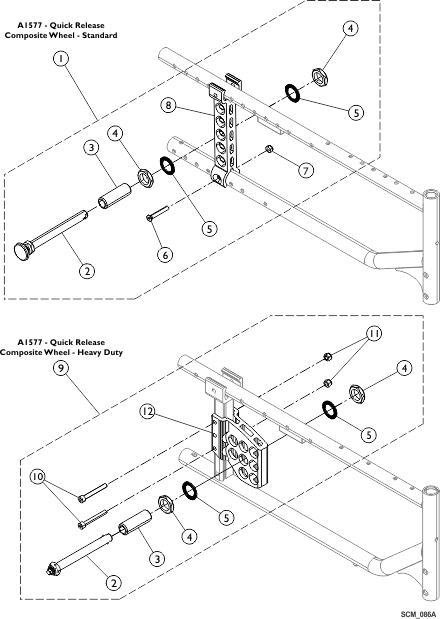

Wheels - Rear - Axle Plates w/ Hardware (A1577 - Composite Wheels)

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1169077

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Washer, Serrated (M20.3 x 30mm x 1.5mm)	1	4
7	NLA - Locknut (M6 x 1)	1	2
4	Nut (3/4-16)	1	4
3	Bushing, Axle, Threaded	1	2
10	Quick Release Suspension Axle	1	2
11	Bushing, Axle, Threaded	1	2
12	Screw, C-Sunk Head (M6 x 1 x 40mm)	1	2
13	Washer, Serrated (M20.3 x 30mm x 1.5mm)	1	4
14	Nut (3/4-16)	1	4
15	NLA - Locknut (M6 x 1)	1	2
16	Plate, Quick Release Axle	1	2
6	Screw, C-Sunk Head (M6 x 1 x 40mm)	1	2
8	Plate, Quick Release Axle	1	2
2	Axle, Quick Release Suspension	1	2

Kit, Hardware, Quick Release Axle Plate (Pair)

1

1

$142.00

A

Create/add to Wishlist

Create/add to Wishlist

9

1523612

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Quick Release Suspension Axle	1	2
5	Washer, Serrated (M20.3 x 30mm x 1.5mm)	1	4
12	Bracket, Axle, Quick Release - Right	1	1
12	Bracket, Axle, Quick Release - Left	1	1
3	Bushing, Axle, Threaded	1	2
11	Nut, w/ Insert, HFR (M6)	1	4
30	Quick Release Suspension Axle	1	2
31	Bushing, Axle, Threaded	1	2
32	Nut (3/4-16)	1	4
33	Washer, Serrated (M20.3 x 30mm x 1.5mm)	1	4
34	Screw, Socket Head (M6 x 50)	1	4
35	Nut, w/ Insert, HFR (M6)	1	4
36	Bracket, Axle, Quick Release - Right	1	1
36	Bracket, Axle, Quick Release - Left	1	1
4	Nut (3/4-16)	1	4
10	Screw, Socket Head (M6 x 50)	1	4

Axle Release Plate Assembly w/ Hardware, Quick Extended (Pair)

1

1

$417.00

B

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Kit includes items 2 - 8.
B	Kit includes items 2, 3, 4, 5, and items 10, 11, and 12.

Catalog Literature

Parts Books for MyOn® United States Junior (FXMYONJR, GRMYONJR) Adult (MYONADLT, MYONTS, HDPG)
