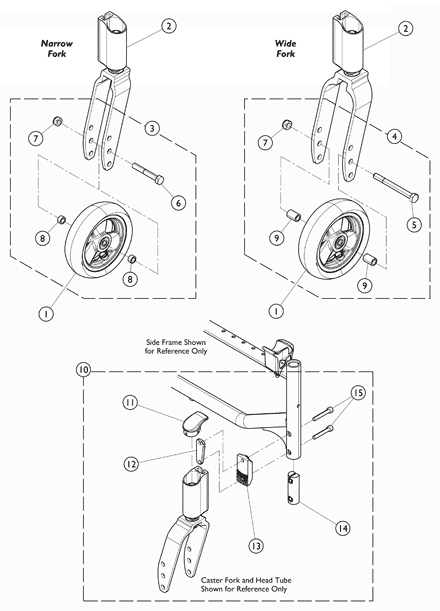

Casters - Caster, Headtube and Fork w/ Mounting Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Caster Type

Wheel/Tire Type

Tire Size

Part No.

Mounting Hardware

5ALUM

Aluminum Urethane

1026952

MSRP: $76.00

1169075

Part/Kit Description	Qty/Pkg	Qty/Asbly
Bolt, Cap, Hex Head (M8 x 55mm)	1	2
Spacer (5/16 x 15/32 x 1/4")	1	4
NLA - Locknut (M8 x 1.25)	1	2

MSRP: $7.00

AT901

Composite Urethane

1029496

MSRP: $39.00

1169075

Part/Kit Description	Qty/Pkg	Qty/Asbly
Bolt, Cap, Hex Head (M8 x 55mm)	1	2
Spacer (5/16 x 15/32 x 1/4")	1	4
NLA - Locknut (M8 x 1.25)	1	2

MSRP: $7.00

AT5SOFT

Soft Roll

5 x 1-1/2"

1157706

MSRP: $114.00

1173020

Part/Kit Description	Qty/Pkg	Qty/Asbly
NLA - Locknut (M8 x 1.25)	1	2
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2
Spacer, Caster	1	4

MSRP: $13.00

AT902

Composite Urethane

1029500

MSRP: $98.00

1169075

Part/Kit Description	Qty/Pkg	Qty/Asbly
Bolt, Cap, Hex Head (M8 x 55mm)	1	2
Spacer (5/16 x 15/32 x 1/4")	1	4
NLA - Locknut (M8 x 1.25)	1	2

MSRP: $7.00

6PNEU

Composite Pneumatic

6 x 1-1/4"

1044040

MSRP: $70.00

1169075

Part/Kit Description	Qty/Pkg	Qty/Asbly
Bolt, Cap, Hex Head (M8 x 55mm)	1	2
Spacer (5/16 x 15/32 x 1/4")	1	4
NLA - Locknut (M8 x 1.25)	1	2

MSRP: $7.00

AT903

Composite Urethane

8 x 1-1/4"

1166026

MSRP: $50.22

1169076

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Flat (5/16 x 5/8 x 1/16")	1	4
NLA - Locknut (M8 x 1.25)	1	2
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2

MSRP: $6.00

AT1292

Composite Pneumatic

8 x 1-1/4"

1166028

MSRP: $115.00

1169076

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Flat (5/16 x 5/8 x 1/16")	1	4
NLA - Locknut (M8 x 1.25)	1	2
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2

MSRP: $6.00

1492

Pneumatic w/ FF Insert

8 x 1-1/4"

1166027

MSRP: $97.83

1169076

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Flat (5/16 x 5/8 x 1/16")	1	4
NLA - Locknut (M8 x 1.25)	1	2
NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2

MSRP: $6.00

Create/add to Wishlist

#1 Casters

N/A

Create/add to Wishlist

See Chart

Added to Cart

Caster Style	(FRKL1) Super Low Single Hole	(FRKS1) Normal Range Single Hole	(FRKS2) Normal Range Two Hole	(FRKS3) Normal Range Three Hole
5ALUM	Note-A 1542007 MSRP: $52.00	1542007 MSRP: $52.00	1538091 MSRP: $74.00	1538090 MSRP: $60.00
AT901	Note-A 1542007 MSRP: $52.00	1542007 MSRP: $52.00	1538091 MSRP: $74.00	1538090 MSRP: $60.00
AT5SOFT	Note-A 1542007 MSRP: $52.00	1542007 MSRP: $52.00	1538092 MSRP: $61.00	1449113 MSRP: $60.00
AT902	1542007 MSRP: $52.00	1488399 MSRP: $69.00	1538092 MSRP: $61.00	1538090 MSRP: $60.00
6PNEU	1542007 MSRP: $52.00	1488399 MSRP: $69.00	1538092 MSRP: $61.00	1538090 MSRP: $60.00
AT903	1542007 MSRP: $52.00	N/A	N/A	1449113 MSRP: $60.00
AT1292	1542007 MSRP: $52.00	N/A	N/A	1449113 MSRP: $60.00
1492	1542007 MSRP: $52.00	N/A	N/A	1449113 MSRP: $60.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Also order Part Number 1449245 (2) when order replacement parts.

#2 Headtube Forks w/ Hardware

N/A

Create/add to Wishlist

1169075

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	NLA - Locknut (M8 x 1.25)	1	2
8	Spacer (5/16 x 15/32 x 1/4")	1	4
5	Spacer (5/16 x 15/32 x 1/4")	1	4
6	NLA - Locknut (M8 x 1.25)	1	2
8	Bolt, Cap, Hex Head (M8 x 55mm)	1	2
6	Bolt, Cap, Hex Head (M8 x 55mm)	1	2

Kit, Caster Attaching Hardware, Narrow Fork (Pair)

$7.00

Create/add to Wishlist

1173020

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	NLA - Screw, Hex Head (M8 x 1.25 x 80mm)	1	2
9	Spacer, Caster	1	4
7	NLA - Locknut (M8 x 1.25)	1	2

Kit, Caster Attaching Hardware, Wide (Pair)

$13.00

Create/add to Wishlist

1169073

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Plate, Mounting Caster, Inner	1	2
12	Plate, Mounting Tube Head	1	2
11	Cap, Head Tube, Caster Housing	1	2
13	Plate, Mounting Caster, Inner	1	2
14	Insert, Support Fork	1	2
15	Screw, (M6 x 1 x 37mm)	1	4
14	Insert, Support Fork	1	2
11	Cap, Head Tube, Caster Housing	1	2
12	Plate, Mounting Tube Head	1	2
15	Screw, (M6 x 1 x 37mm)	1	4

Kit, Headtube Attaching Hardware (Pair)

$49.00

C ,E

Create/add to Wishlist

1172240

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
13	Plate, Mounting Caster, Inner	1	2
11	Cap, Head Tube, Caster Housing	1	2
14	Insert, Support Fork	1	2
12	Plate, Mounting Tube Head	1	2

Kit, Headtube Attachment Hardware (TRBKTS/TRRO)

$36.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 6, 7, and 8.
B	Includes items 5, 7, and 9.
C	Includes items 11 - 15.
D	Includes items 11 - 14.
E	Please review your Owners Manual for Torque Specification and Torque Label when replacing parts from this kit.

Catalog Literature

Parts Books for MyOn® United States Junior (FXMYONJR, GRMYONJR) Adult (MYONADLT, MYONTS, HDPG)
